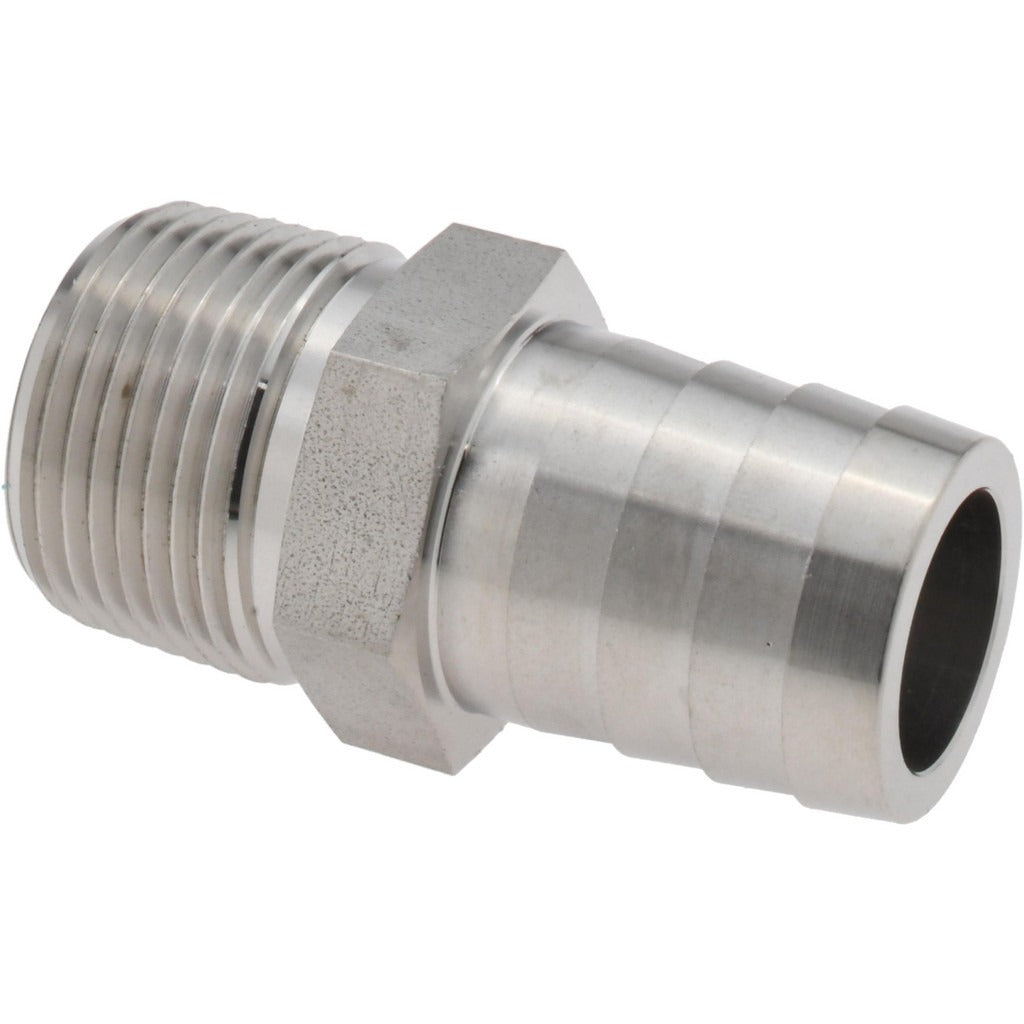

Value Collection SS-PH-MN12 Hose Connector 3/4 in Barb Mnpt

Product Description

The VALUE COLLECTION SS-PH-MN12 is a 316 stainless steel hose connector designed for high-pressure fluid transfer applications. Featuring a barbed inlet and a male NPT (MNPT) threaded outlet, this fitting creates a secure, leak-resistant transition between flexible hose and threaded pipe systems. Rated to 6,800 psi and constructed from 316-grade stainless steel, it provides strong corrosion resistance in demanding environments. At 2.14 inches in length and 0.25 pounds, the compact form factor suits tight installations. Plumbers, pipefitters, and industrial maintenance technicians typically install this fitting in process piping, hydraulic, and utility systems.

This connector is suited for 3/4 inch hose-to-pipe transitions in both commercial and industrial piping systems. The barb end grips flexible hose securely, while the MNPT end threads into standard female NPT fittings. Common applications include process fluid lines, cooling water circuits, compressed air systems, and chemical transfer where stainless steel material compatibility and high-pressure performance are required. Each package contains one fitting.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh or wet environments
• 6,800 psi pressure rating supports high-pressure fluid and gas transfer applications
• Barb x MNPT end configuration for direct hose-to-threaded-pipe connection
• 3/4 inch fitting size compatible with standard 3/4 inch hose and NPT pipe threads
• Compliant with ANSI B 31.1, ASME/ANSI Refiner Piping Code, and ASME/ANSI B1.20.1 (1983) standards
• Compact at 2.14 inches in length and 0.25 pounds for easy handling and installation in confined spaces

Compatibility

Designed as a replacement-style hose connector for 3/4 inch barbed hose assemblies terminating in standard female NPT threaded ports in industrial and commercial piping systems.

Installation Notes

Installation should be performed by a qualified plumber or pipefitter in accordance with applicable codes including ANSI B 31.1 and ASME standards. Depressurize and drain the system fully before removing any existing fittings or making connections. Apply appropriate thread sealant or PTFE tape to the MNPT threads per standard practice, and ensure the barb end is secured with an appropriate clamp rated for the operating pressure. Do not exceed the rated pressure of the fitting or connected hose assembly.
