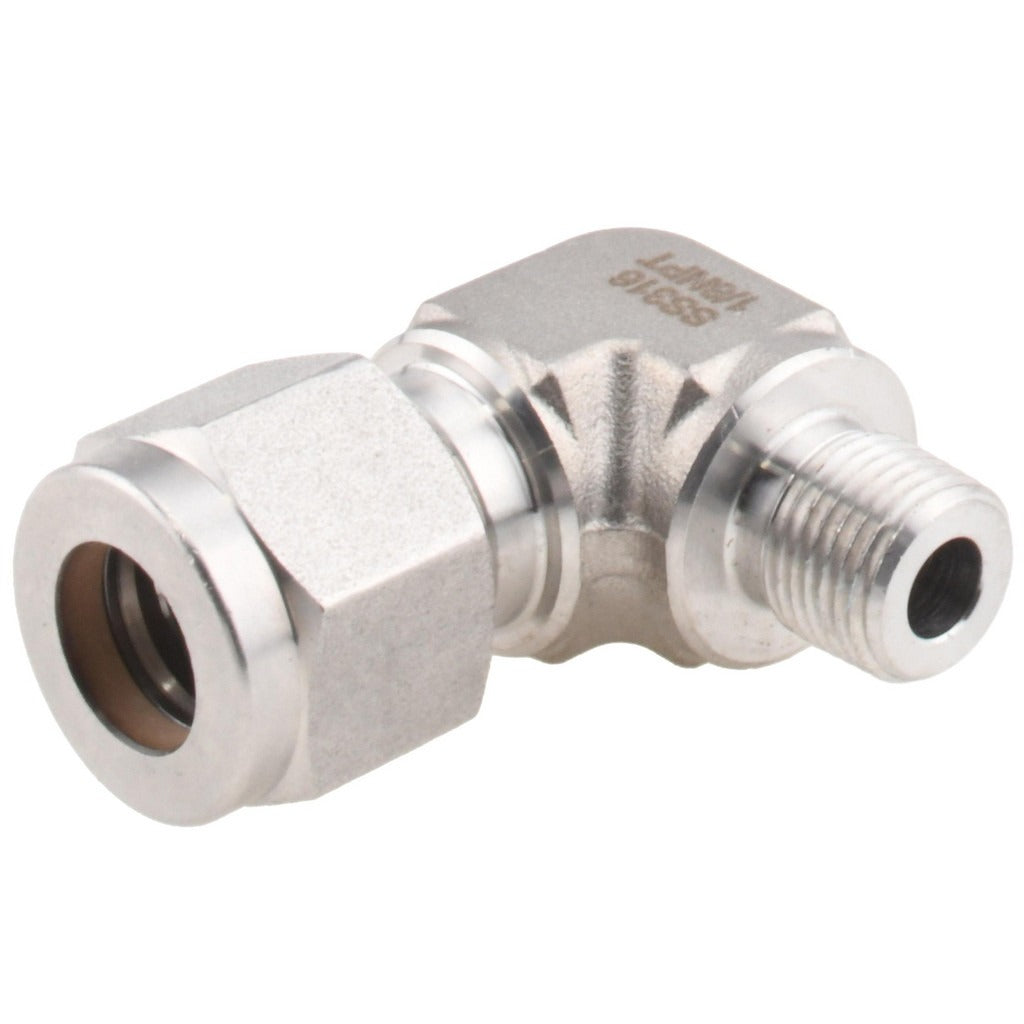

Value Collection SS-ME-FT6-MN2 Compression Male Elbow

Product Description

The VALUE COLLECTION SS-ME-FT6-MN2 is a stainless steel compression tube male elbow designed to connect 3/8 inch OD tubing to a 1/8 inch male NPT threaded port. The fitting transitions from a compression end to an MNPT end at a 90-degree angle, allowing direction changes in tubing runs without requiring welded or flared connections. Manufactured from 316 stainless steel, it meets multiple ASTM and DIN standards for material quality and corrosion resistance. Overall length is 1.2 inches. It is commonly installed by plumbers, HVAC technicians, and pipefitters working with instrumentation, pneumatic, or fluid transfer lines in demanding environments.

This fitting is suited for residential and light commercial applications where tubing must change direction and connect to a threaded component. Typical install scenarios include instrumentation panels, process piping, compressed air lines, and refrigeration or HVAC system tubing where a 3/8 inch OD tube terminates at a 1/8 inch NPT port. The compression end grips the tube mechanically without solder or flare tools, making it practical for field installations where torch work is restricted or impractical.

Key Features

• 316 stainless steel construction for corrosion resistance in wet, chemical, or outdoor environments
• Compression x MNPT end connections — no soldering, brazing, or flaring required
• 3/8 inch tube OD inlet paired with 1/8 inch male NPT outlet
• 1.2 inch overall length for compact installations
• Meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, ASTM A479, DIN EN10122-5, and DIN EN10272 standards
• Thread standard: NPT

Compatibility

Designed as a standard compression-to-MNPT elbow fitting for systems using 3/8 inch OD tubing with 1/8 inch NPT threaded ports. Cross-references to Swagelok part number SS-600-2-2.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or HVAC technicians. Shut off and depressurize the system completely before removing or installing any compression fitting. Insert the tube squarely and fully into the compression end before tightening the ferrule nut — do not overtighten, as this can deform the ferrule and cause leaks. Follow applicable IPC or IFGC guidelines and local code requirements for the specific fluid or gas service intended.
