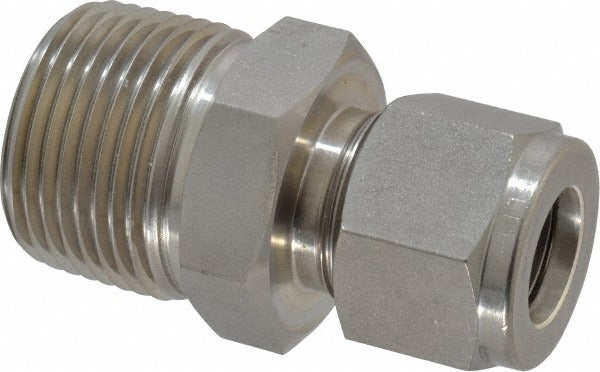

Value Collection SS-MC-FT8-MN12 Compression Tube Connector

Product Description

The VALUE COLLECTION SS-MC-FT8-MN12 is a stainless steel compression tube male connector designed to join 1/2 inch OD tubing to a 3/4 inch male NPT threaded port. Constructed from 316 stainless steel and conforming to multiple ASTM and DIN standards, this fitting delivers reliable corrosion resistance in demanding fluid and gas handling applications. The compression end grips tubing mechanically without welding or soldering, while the male NPT end threads directly into a compatible female port. Overall length is 1.99 inches. This type of fitting is typically installed by licensed plumbers, pipefitters, or instrumentation technicians working on process, hydraulic, or industrial piping systems.

This connector is suited for use in instrumentation lines, pneumatic systems, hydraulic circuits, and process piping where stainless steel corrosion resistance and a secure, leak-tight mechanical connection are required. The compression-by-male-NPT end configuration makes it a practical choice when connecting tubing runs to valves, manifolds, or equipment ports in both commercial and industrial environments. Applicable in systems handling water, gases, oils, and other compatible media within the rated parameters of the fitting.

Key Features

• 316 stainless steel construction for superior corrosion resistance in wet, chemical, and high-purity environments
• Compression x male NPT end connections allow tool-based, no-solder installation
• Accepts 1/2 inch OD tubing on the compression end
• 3/4 inch male NPT thread for direct connection to standard female NPT ports
• Overall length of 1.99 inches suits tight-clearance installations
• Meets ASTM A182, A213, A269, A276, A479 and DIN EN10122-5, DIN EN10272 standards

Compatibility

Designed as an OEM-style compression tube male connector for instrumentation, pneumatic, hydraulic, and process piping systems requiring a 1/2 inch OD tube compression end and a 3/4 inch male NPT threaded connection. Cross-references to Swagelok part number SS-810-1-12.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or instrumentation technician following applicable codes including ASME B31.1 or B31.3 for process piping. Depressurize and isolate the line completely before disassembling or installing any compression fitting. Hand-tighten the compression nut first, then apply the manufacturer-specified additional turns with a wrench to seat the ferrule — do not overtighten, as this can deform the ferrule and compromise the seal. Inspect tubing ends for squareness and burrs before assembly.
