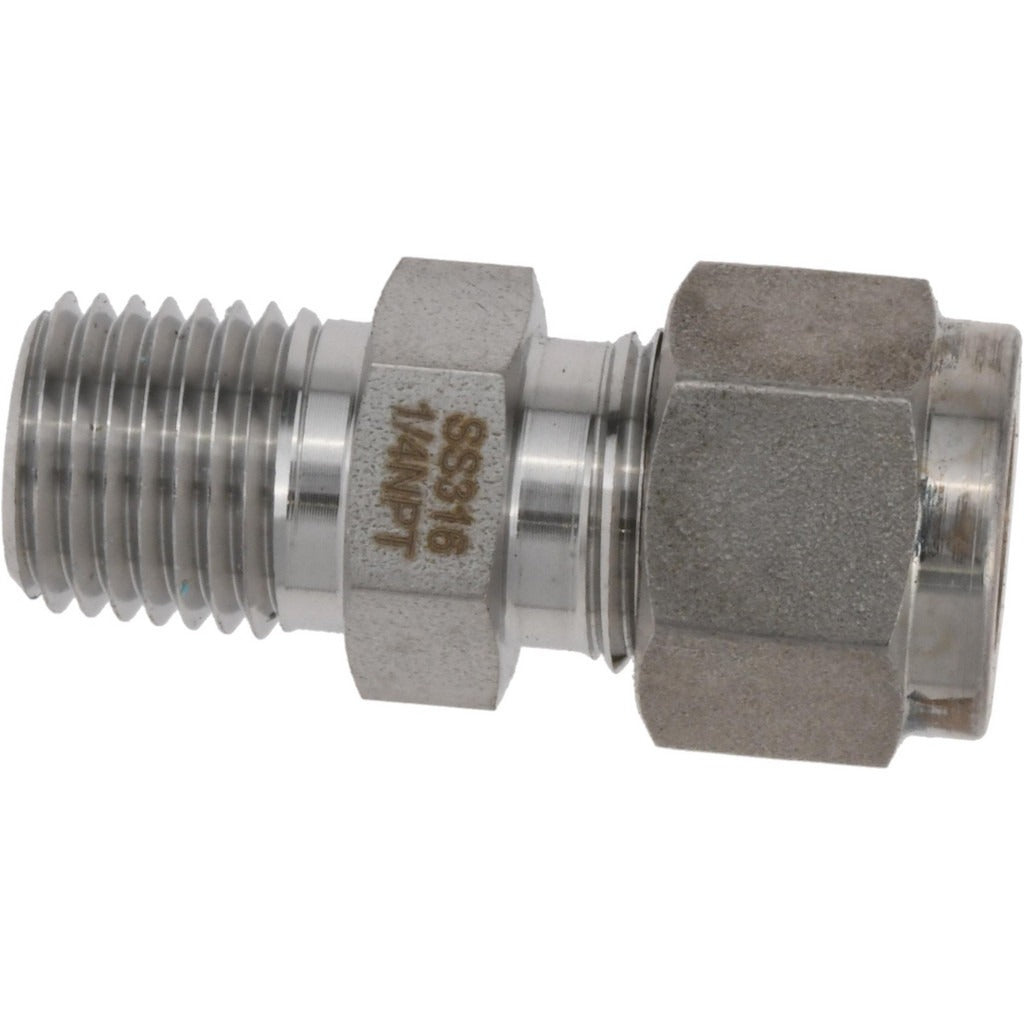

Value Collection SS-MC-FT6-MN4 Compression Male Connector

Product Description

The VALUE COLLECTION SS-MC-FT6-MN4 is a stainless steel compression tube male connector designed to join 3/8-inch OD tubing to a 1/4-inch male NPT threaded port. Constructed from 316 stainless steel, it meets multiple ASTM and DIN standards, making it suitable for demanding fluid and gas service applications. The fitting features compression-style tube engagement on one end and a male NPT thread on the other, providing a reliable, leak-resistant connection without the need for soldering or flaring. Plumbers, pipefitters, and instrumentation technicians install this type of fitting in process lines, instrumentation tubing runs, and high-purity fluid systems.

This connector is used in residential and commercial applications where stainless steel construction is required for corrosion resistance or cleanliness requirements. Typical installations include instrument tubing connections, compressed air lines, hydraulic sensing lines, and chemical or water treatment systems. The compression-by-MNPT configuration allows direct connection to NPT-threaded valves, manifolds, regulators, and equipment ports. Its compact overall length of approximately 1.57 inches suits tight installation spaces common in panel-mounted or rack-mounted plumbing assemblies.

Key Features

• 316 stainless steel construction for corrosion resistance in wet, chemical, and process environments
• Compression x MNPT end connections eliminate the need for soldering or flaring
• Meets ASTM A182, A213, A269, A276, A479 and DIN EN10122-5, DIN EN10272 standards
• 3/8-inch tube OD compression end accepts standard tubing without modification
• 1/4-inch male NPT thread for direct connection to NPT-ported equipment and fittings
• Compact overall length of 1.57 inches suits confined installation spaces

Compatibility

Designed as an OEM-style compression tube male connector for use with 3/8-inch OD tubing systems terminating at 1/4-inch MNPT ports. Cross-references to Swagelok part number SS-600-1-4.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters in accordance with applicable plumbing codes such as the IPC. Depressurize and isolate the tubing system completely before disassembling or installing compression fittings. Insert tubing fully into the fitting body before tightening the compression nut to ensure proper ferrule seating. Apply thread sealant compatible with the service fluid to the male NPT threads per manufacturer and code requirements.
