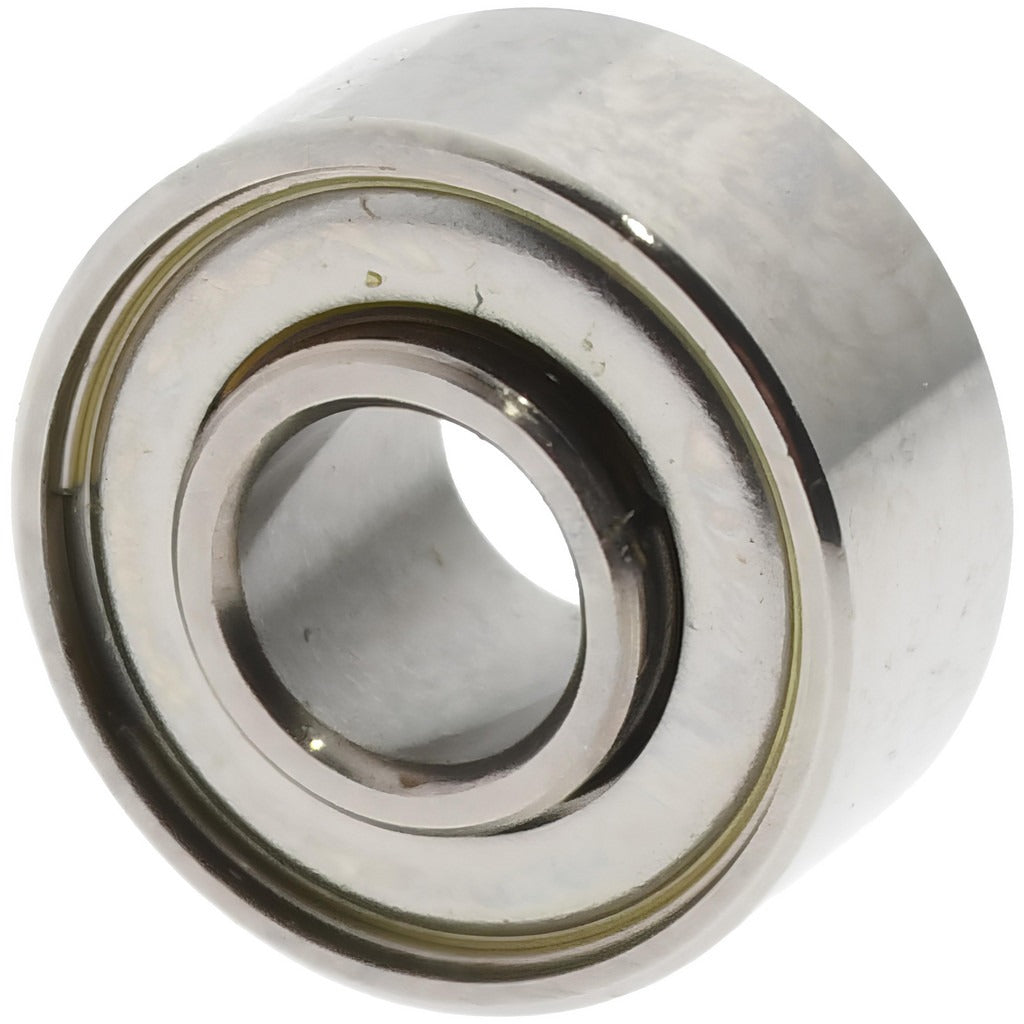

Value Collection SRW2-5ZZ Miniature Ball Bearing

Product Description

The VALUE COLLECTION SRW2-5ZZ is a single-row miniature ball bearing designed for precision rotating applications where space is at a premium. It features a 0.125 inch bore diameter, a 0.3125 inch outside diameter, and an overall width of 0.1406 inches. The double-shield design keeps contaminants out of the raceway without adding significant drag. Rated to an ABEC-5 tolerance class, this bearing delivers consistent dimensional accuracy for light-duty spindles, instruments, and small motor applications. The stainless steel housing material provides corrosion resistance in damp or lightly corrosive environments. Static load capacity is 40 pounds and dynamic load capacity is 124 pounds.

This miniature ball bearing is suited for compact rotating assemblies found in HVAC blower motors, small pump shafts, instrumentation, and precision mechanical equipment. Its small envelope makes it a common choice wherever a standard-sized bearing will not fit. The round bore and unflanged, non-snap-ring design allow straightforward press-fit installation into standard housings. It is packaged individually and is appropriate for both OEM assembly and field replacement work.

Key Features

• ABEC-5 tolerance class for consistent dimensional accuracy in precision applications
• Double-shield configuration protects the raceway from dust and light contamination
• Stainless steel housing material resists corrosion in damp service environments
• 124 pound dynamic load capacity and 40 pound static load capacity
• Single-row, round bore, unflanged design for straightforward press-fit installation
• Compact miniature envelope: 0.125 inch bore, 0.3125 inch OD, 0.1406 inch width

Compatibility

Designed as an OEM-style replacement miniature ball bearing for compact rotating assemblies requiring a 0.125 inch bore and 0.3125 inch outside diameter with a double-shield configuration.

Installation Notes

Installation is typically performed by mechanical technicians or qualified service personnel using a bearing press or appropriate arbor to seat the bearing without applying force through the rolling elements. Always power down and de-energize the equipment before removing or installing bearings. Avoid striking the outer or inner ring directly with a hammer, as this can damage the shields and raceway surfaces. Follow applicable equipment manufacturer service procedures during replacement.
