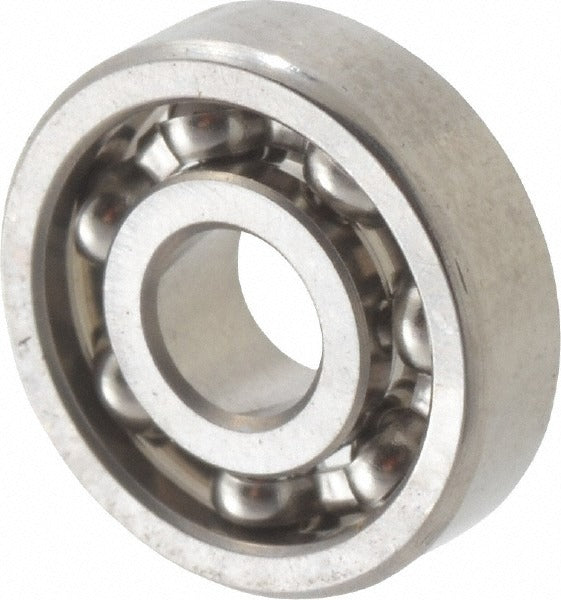

Value Collection SR2-6 Miniature Ball Bearing ABEC-5

Product Description

The VALUE COLLECTION SR2-6 is a miniature open-style ball bearing designed for precision rotating equipment and light-duty mechanical assemblies. It features a round bore diameter of 0.125 inches and an outside diameter of 0.375 inches, with an overall width of 0.1094 inches. The single-row design carries a static load capacity of 49 pounds and a dynamic load capacity of 144 pounds. The housing is constructed from stainless steel for corrosion resistance. Rated ABEC-5 for dimensional accuracy and running precision, this bearing suits applications where tight tolerances and consistent performance are required.

This miniature ball bearing is used in small motors, instrumentation, medical devices, robotics, and precision mechanical assemblies where compact dimensions and controlled tolerances are essential. The open-style configuration allows for direct lubrication access and is appropriate in clean, controlled environments. It installs in a single-row orientation without a snap ring or flange, making it compatible with housings machined to standard bore and OD dimensions. Maintenance technicians, machine builders, and precision equipment service professionals typically work with this bearing type.

Key Features

• Bore diameter of 0.125 inches with round bore type for standard shaft fitment
• Outside diameter of 0.375 inches and overall width of 0.1094 inches for compact installations
• ABEC-5 precision rating for tight dimensional tolerances and low runout
• Stainless steel housing material provides corrosion resistance in demanding environments
• Open style allows direct lubrication and suits clean operating conditions
• Single-row design with no flange and no snap ring for straightforward housing integration

Compatibility

Designed as a standard miniature ball bearing replacement suitable for equipment requiring an SR2-6 bearing with a 0.125 inch bore, 0.375 inch OD, and 0.1094 inch width in an open, unflanged configuration.

Installation Notes

Installation should be performed by qualified mechanical technicians familiar with precision bearing fitment practices. Always power down and de-energize equipment before removing or installing bearings. Use a proper bearing press or arbor tool to apply force evenly to the bearing race during installation — never strike the bearing directly. Ensure the housing bore and shaft are clean, within tolerance, and free of burrs before seating the bearing.
