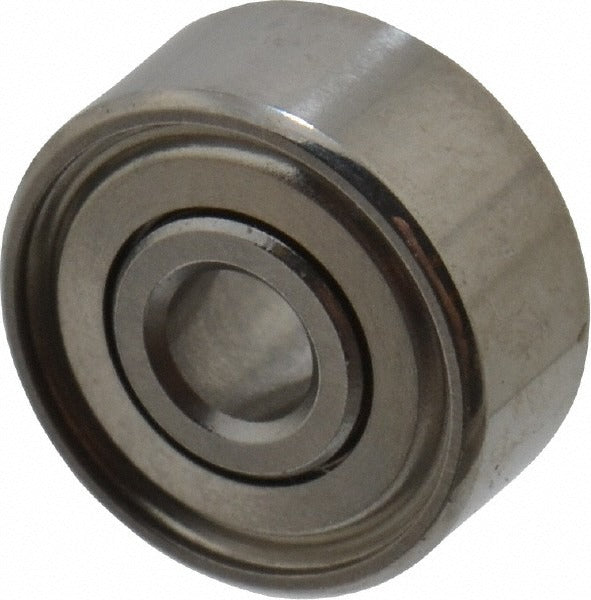

Value Collection SR1-5ZZ Miniature Ball Bearing ABEC-5

Product Description

The VALUE COLLECTION SR1-5ZZ is a miniature radial ball bearing built for applications requiring precise, low-friction rotation in a compact envelope. It features a 0.0937-inch bore diameter, a 0.3125-inch outside diameter, and an overall width of 0.1406 inches. The double-shield design protects the internal ball and raceway assembly from contamination without requiring an external seal. Rated at ABEC-5 precision, this bearing is suited for light-duty mechanical assemblies where dimensional accuracy and smooth operation matter. The stainless steel housing offers corrosion resistance in moderate-exposure environments. A single row of balls handles both radial and limited axial loading in confined spaces.

This miniature ball bearing fits precision mechanical assemblies found in HVAC equipment, small motors, pumps, instrumentation, and light industrial machinery. With a bore diameter under 0.1 inches, it is sized for low-load rotating shafts and spindle applications. The double-shield configuration makes it practical for installations where debris intrusion is a concern but access for re-lubrication is limited. Technicians working on small fractional-horsepower motors, blower assemblies, or precision rotating components in trade equipment will find this bearing compatible with standard miniature shaft sizes in that range.

Key Features

• 0.0937-inch bore diameter and 0.3125-inch OD for compact, precision-fit installations
• Overall width of 0.1406 inches suits space-constrained assemblies
• Double-shield style reduces contamination ingress without contact-seal drag
• ABEC-5 precision rating for dimensional accuracy and reduced runout
• Stainless steel housing construction for corrosion resistance
• 124-pound dynamic load capacity and 40-pound static load capacity in a miniature form factor

Compatibility

Designed as a direct-replacement miniature ball bearing for equipment using a round-bore, non-flanged, double-shield bearing with a 0.0937-inch bore, 0.3125-inch OD, and 0.1406-inch width. No snap ring included.

Installation Notes

Miniature ball bearings of this type are typically installed by mechanical technicians or trained service professionals using precision bearing presses or press-fit tools sized to the housing bore. Always de-energize and lock out the equipment before removing or installing bearings. Avoid applying installation force through the balls or shields — press only on the bearing race that contacts the mating surface. Inspect the shaft and housing seat for wear, scoring, or out-of-round conditions before installing a replacement bearing.
