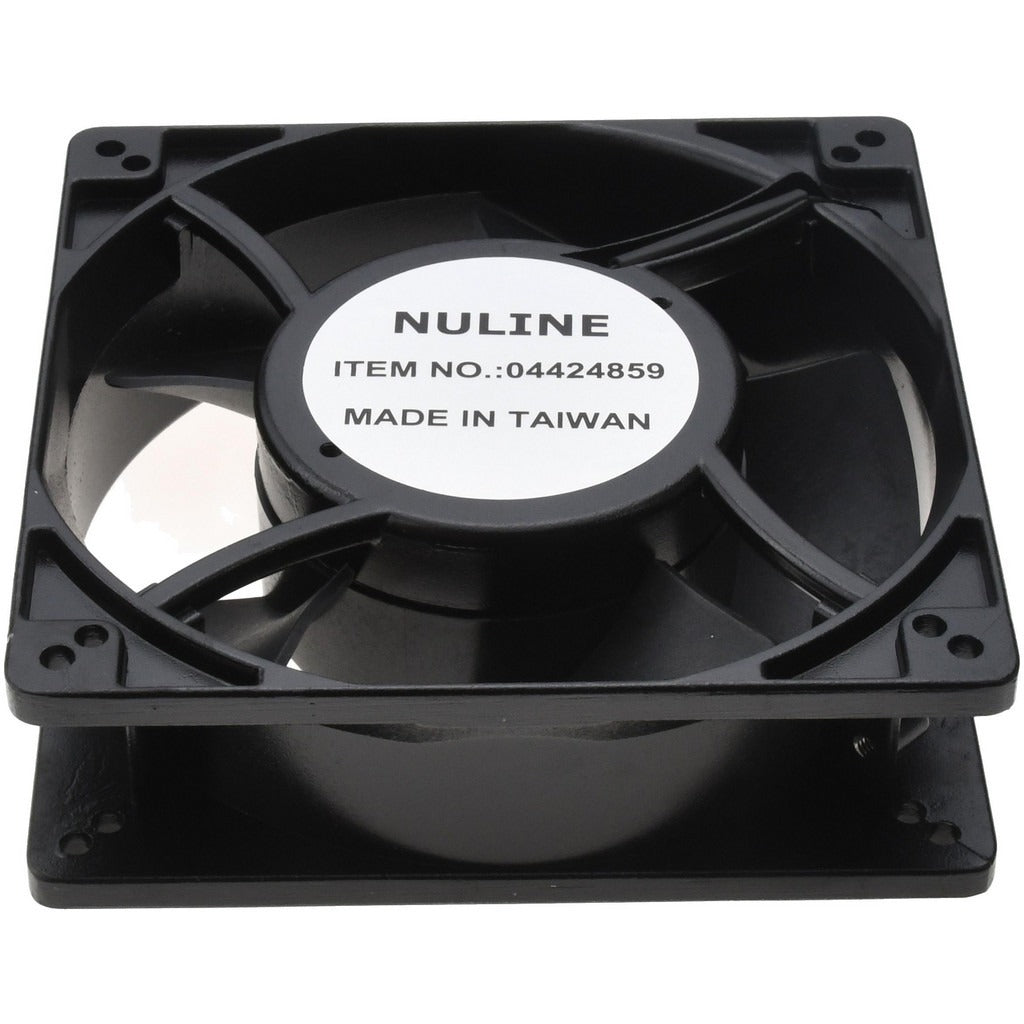

Value Collection SO2145-30 Axial Fan 130 Cfm 230V

Product Description

The VALUE COLLECTION SO2145-30 is a square tube axial fan designed for forced-air ventilation in industrial and commercial equipment enclosures. Running on 230 volts AC, it delivers 130 CFM of airflow at a speed range of 2650 to 3100 RPM, making it suitable for continuous-duty cooling applications. The fan draws 0.190 amps and uses a ball bearing construction for extended service life in demanding environments. At 1.25 pounds, it is compact and lightweight. Licensed electricians and HVAC technicians are the primary installers for this type of unit.

This axial fan fits panel-mount and enclosure-cooling applications where 230V AC power is available and square tube mounting is required. Its 5 inch by 5 inch face profile is a common footprint in control cabinets, industrial equipment housings, and air-handling sections requiring low-profile forced ventilation. The 1.5 inch depth keeps the installed footprint minimal in tight enclosures.

Key Features

• 130 CFM airflow for effective enclosure and cabinet cooling
• 230 volt AC power input with 0.190 amp draw
• Variable speed range of 2650 to 3100 RPM
• Ball bearing design for long service life and reduced maintenance
• Square tube form factor with 5 inch x 5 inch face for standard panel cutouts
• Compact 1.5 inch depth for space-constrained installations

Compatibility

Designed as an OEM-style replacement or direct-mount axial fan for industrial enclosures, control cabinets, and commercial equipment requiring a 5 inch square, 230V AC forced-air cooling solution.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC requirements for the voltage class and enclosure type. Disconnect and lock out all power to the enclosure before removing or installing the fan. Verify that the supply voltage matches the fan rating of 230 volts AC before energizing. Secure the fan using the manufacturer-recommended mounting hardware appropriate for the enclosure material.
