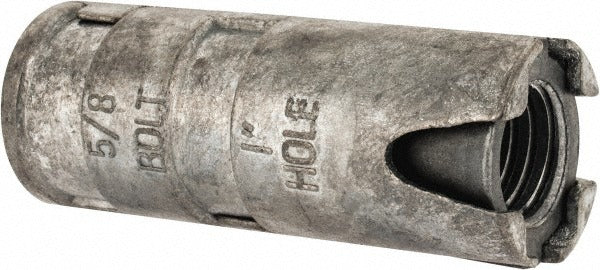

Value Collection SMBS063CP-025BX Expansion Shield Anchor

Product Description

The VALUE COLLECTION SMBS063CP-025BX is an alloy steel expansion shield anchor designed for anchoring threaded fasteners into concrete, masonry, and similar base materials. With a 5/8 inch diameter and a 5/8-11 thread size, it accepts standard 5/8-11 threaded rod or bolts. A minimum embedment depth of 2-3/4 inches is required for proper load transfer. These anchors are installed by expanding against the base material as the bolt is tightened, creating a secure mechanical hold. They are suited for structural attachment points in commercial and industrial settings where reliable anchoring into hard substrates is required.

This expansion shield anchor is used in applications where bolts or threaded rod must be set into concrete or masonry surfaces. Typical uses include equipment mounting, structural brackets, hangers, and mechanical support connections. The alloy steel construction handles demanding load conditions in both interior and exterior environments where a durable, permanent anchor point is needed. Licensed tradespeople across plumbing, HVAC, electrical, and general construction regularly use this type of anchor when setting equipment supports, pipe hangers, and panel brackets.

Key Features

• 5/8 inch diameter with 5/8-11 thread size for compatibility with standard fasteners
• 2-3/4 inch minimum embedment depth for reliable load transfer in concrete and masonry
• Alloy steel construction for strength in heavy-duty anchoring applications
• Expansion-style design creates a mechanical lock as the bolt is tightened
• Sold individually with a minimum order quantity of 5 units

Compatibility

Designed as a standard expansion shield anchor for use with 5/8-11 threaded rod or bolts in concrete, block, and solid masonry base materials.

Installation Notes

Installation is typically performed by a licensed contractor or qualified tradesperson. Drill a hole matching the anchor diameter and clean out dust and debris before inserting the anchor to the required embedment depth. Follow applicable building codes and the anchor manufacturer guidelines for hole preparation, embedment, and torque requirements. Never install into cracked, spalled, or structurally compromised base material.
