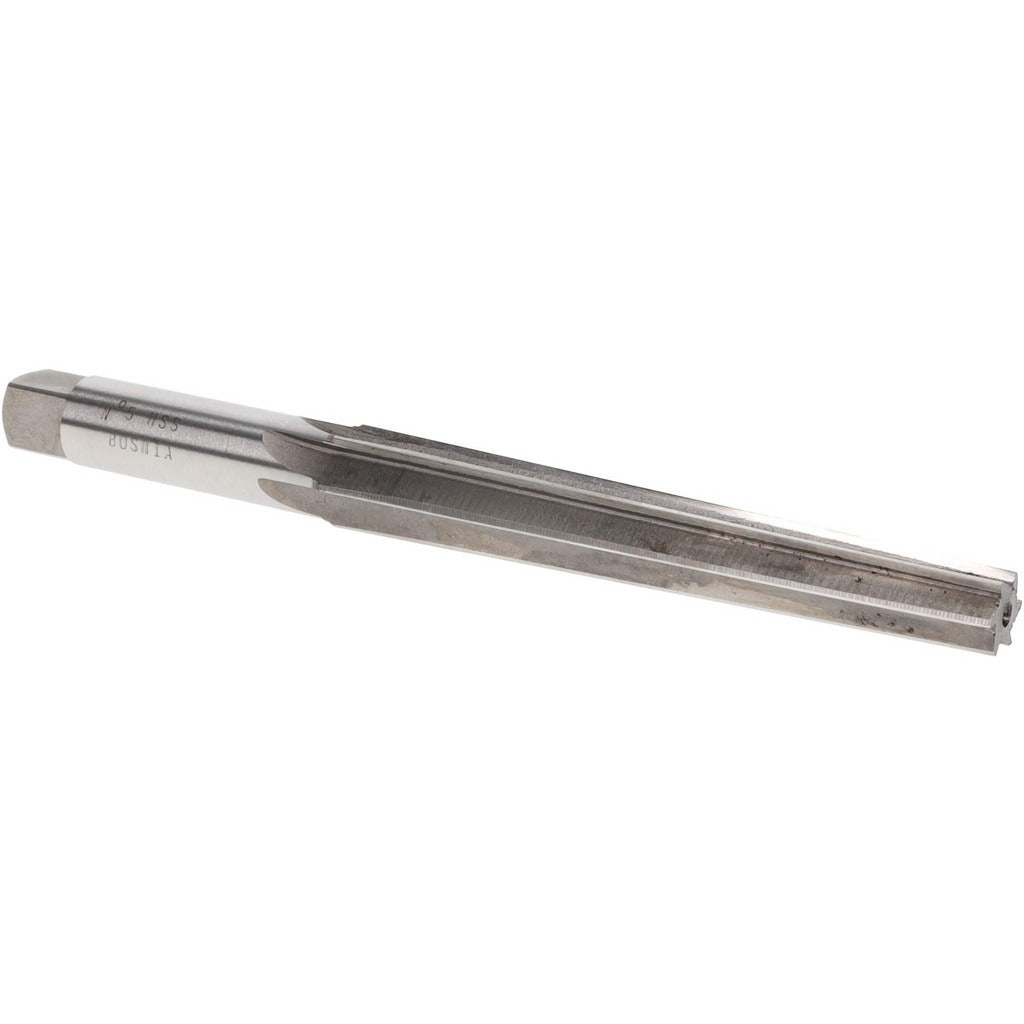

Value Collection SM35BS05 Brown Sharpe Taper Reamer Size 5

Product Description

The VALUE COLLECTION SM35BS05 is a Brown and Sharpe Taper Reamer designed for precision taper reaming in metal fabrication, toolroom, and machine shop applications. Built from high speed steel with a bright finish, this straight-flute reamer delivers consistent stock removal and accurate taper formation in ferrous and non-ferrous materials. The tool carries a Size 5 Brown and Sharpe taper designation, features a small end diameter of 0.45 inches and a large end diameter of 0.617 inches, and has an overall length of 6.375 inches. It is appropriate for use by machinists, tool and die makers, and maintenance technicians performing precision bore work.

This reamer is suited for manual or machine reaming of Brown and Sharpe taper bores in milling machines, lathes, grinders, and precision fixtures. The 4-inch flute length and 9/16-inch shank diameter make it compatible with standard toolholders and collet chucks found in typical machine shop setups. The right-hand cut orientation is standard for conventional feed direction. It is sold individually and appropriate for low-volume toolroom use as well as production maintenance environments.

Key Features

• Brown and Sharpe Taper Size 5 designation for standard taper bore reaming
• High speed steel construction for durability across ferrous and non-ferrous materials
• Straight flute geometry for smooth, consistent stock removal
• Right-hand cut for conventional feed direction
• Bright finish for reduced friction and easy inspection of cutting edges
• 4-inch flute length with 6.375-inch overall length for reach in standard setups

Compatibility

Designed as an OEM-style replacement or shop-grade toolroom reamer for machinery spindles and fixtures requiring a Brown and Sharpe Size 5 taper bore.

Installation Notes

Installation and use of taper reamers should be performed by qualified machinists or toolroom technicians. Secure the shank firmly in an appropriate collet, toolholder, or drill press chuck before use, and ensure the workpiece is properly fixtured to prevent movement during reaming. Power down and de-energize all machine tools before changing or seating the reamer. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish quality.
