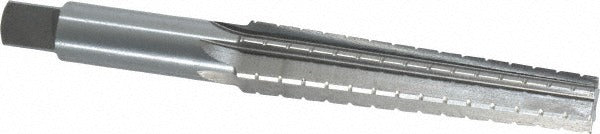

Value Collection SM34MT02 2MT Morse Taper Reamer Hss

Product Description

The VALUE COLLECTION SM34MT02 is a 2MT Morse taper reamer designed for finishing and sizing Morse taper sockets in machine tools, drill presses, and spindles. Built from high-speed steel with a bright, uncoated finish, this reamer features a straight flute geometry and right-hand cut action that produces clean, accurate tapered bores. The small end diameter is 0.5696 inches, the large end diameter is 0.7444 inches, and the overall length is 6 inches. The cylindrical straight shank measures 0.6875 inches in diameter, allowing secure chuck or collet mounting during use. Machinists and tool-room technicians use this reamer to restore or finish Morse taper seats to close tolerances.

This reamer is suited for use in machine shop environments where Morse taper No. 2 sockets must be finished, blended, or cleaned up after boring or casting operations. It is appropriate for both manual and machine-fed reaming operations on ferrous and non-ferrous metals. The 3.5-inch flute length provides adequate chip clearance during through-socket and blind-socket passes. Its straight flute design makes it well-suited for materials that produce broken or short chips.

Key Features

• 2MT Morse taper profile for finishing No. 2 Morse taper sockets
• High-speed steel construction for durability across ferrous and non-ferrous materials
• Straight flute geometry promotes clean chip evacuation in short-chipping materials
• Right-hand cut direction compatible with standard machine spindle rotation
• Bright, uncoated finish allows easy visual inspection of cutting edges
• Cylindrical straight shank fits standard chucks and collets

Compatibility

Designed as an OEM-style replacement or standard tooling option for machine tools, drill presses, lathes, and milling machines equipped with No. 2 Morse taper spindle sockets.

Installation Notes

This reamer should be installed and operated by a qualified machinist familiar with taper reaming procedures. Always power down and lock out the machine before mounting or removing the reamer from the spindle or chuck. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Do not exceed the recommended feed rate for the material being reamed, as excessive feed pressure can cause chatter or bell-mouthing of the taper socket.
