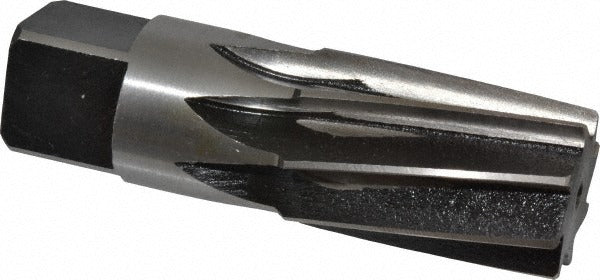

Value Collection SM32P0100 Taper Pipe Reamer 1 in

Product Description

The VALUE COLLECTION SM32P0100 is a taper pipe reamer designed to finish and size threaded pipe openings to the correct taper for leak-free connections. It features a spiral flute geometry with a left-hand spiral and right-hand cut, which helps pull chips out of the bore during operation. The reamer diameter is 1.212 inches, the small end diameter is 1.103 inches, and the overall length is 3.75 inches. The body is machined from high-speed steel with a bright finish, giving it the edge retention needed for ferrous pipe materials. Licensed plumbers and pipefitters reach for this tool when preparing cast iron, carbon steel, or malleable iron fittings for NPT connections.

This taper pipe reamer is sized for 1-inch pipe and is suited for use in plumbing, HVAC piping, and industrial pipefitting applications. The straight cylindrical shank accepts standard drill chucks or tap-and-die reamer handles. The 1.75-inch flute length provides sufficient cutting surface for through-bore work on standard pipe fittings and valves. It is typically used in shops or in the field when a drilled or cast hole needs to be brought to a precise NPT taper before threading or fitting assembly.

Key Features

• Left-hand spiral, right-hand cut geometry evacuates chips away from the finished bore
• Reamer diameter of 1.212 inches with small end diameter of 1.103 inches for accurate NPT taper sizing
• High-speed steel construction provides edge retention across ferrous and non-ferrous pipe materials
• Bright finish reduces friction and aids chip clearance during operation
• Straight cylindrical shank fits standard drill chucks and reamer wrenches
• 1.75-inch flute length suited for standard pipe fitting wall thicknesses

Compatibility

Designed as an OEM-style replacement and standard-fit tool for 1-inch NPT pipe applications in plumbing, HVAC piping, and industrial pipefitting operations.

Installation Notes

This tool is typically used by licensed plumbers and pipefitters. Secure the workpiece firmly before reaming and ensure the reamer is aligned axially with the bore to prevent bell-mouthing or chatter. Apply cutting oil throughout the operation to extend tool life and improve finish quality. Inspect the reamed bore before threading or fitting assembly to confirm the taper is within specification.
