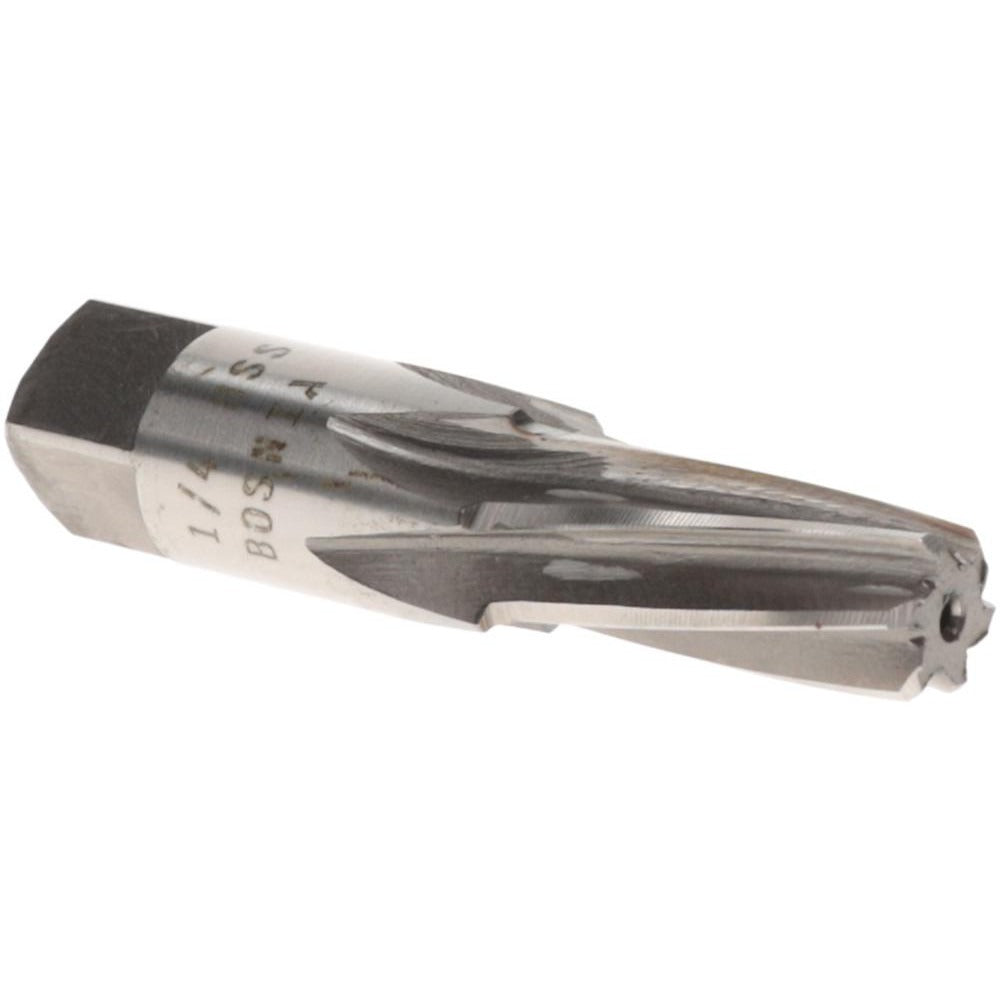

Value Collection SM32P0016 Taper Pipe Reamer

Product Description

The VALUE COLLECTION SM32P0016 is a taper pipe reamer designed to finish and size tapered pipe threads in metal workpieces. It features a spiral flute geometry with a left-hand spiral and right-hand cut, which helps clear chips effectively during the reaming operation. Built from high-speed steel with a bright finish, this reamer handles the dimensional requirements of 1/4 inch pipe applications, producing a reamed diameter of 0.472 inches and a small end diameter of 0.406 inches. The straight cylindrical shank seats securely in standard drill chucks or machine spindles. Plumbers, pipefitters, and machinists install this tool when preparing pipe fittings and threaded connections that require precise tapered bores.

This taper pipe reamer is suited for use on 1/4 inch pipe fittings in both residential and light commercial piping work. It is used in applications where hand or machine reaming is needed to bring a tapered pipe hole to final size before threading or fitting assembly. The 1-1/16 inch flute length and 2-7/16 inch overall length make it appropriate for shallow-bore work in pipe fittings, manifolds, and similar components. It is compatible with standard drill presses, lathes, and hand-held drilling equipment that accept a straight cylindrical shank.

Key Features

• Taper pipe configuration sized for 1/4 inch pipe with a 0.472 inch reamer diameter
• Left-hand spiral flute promotes chip evacuation during right-hand cutting
• High-speed steel construction provides hardness and wear resistance across common pipe materials
• Bright finish straight cylindrical shank fits standard chucks without modification
• Compact 2-7/16 inch overall length suits shallow-bore and close-clearance reaming tasks
• 1-1/16 inch flute length delivers adequate cutting engagement for pipe fitting bores

Compatibility

Designed as a standard taper pipe reamer for 1/4 inch pipe fittings; compatible with drill presses, lathes, and hand drilling equipment accepting a straight cylindrical shank.

Installation Notes

This tool is typically used by plumbers, pipefitters, and machinists operating hand or machine drilling equipment. Secure the workpiece firmly before reaming and ensure the reamer is centered on the pilot hole to maintain concentricity. Apply appropriate cutting fluid for the material being reamed to extend tool life and improve finish quality. Always use appropriate personal protective equipment when operating rotary cutting tools.
