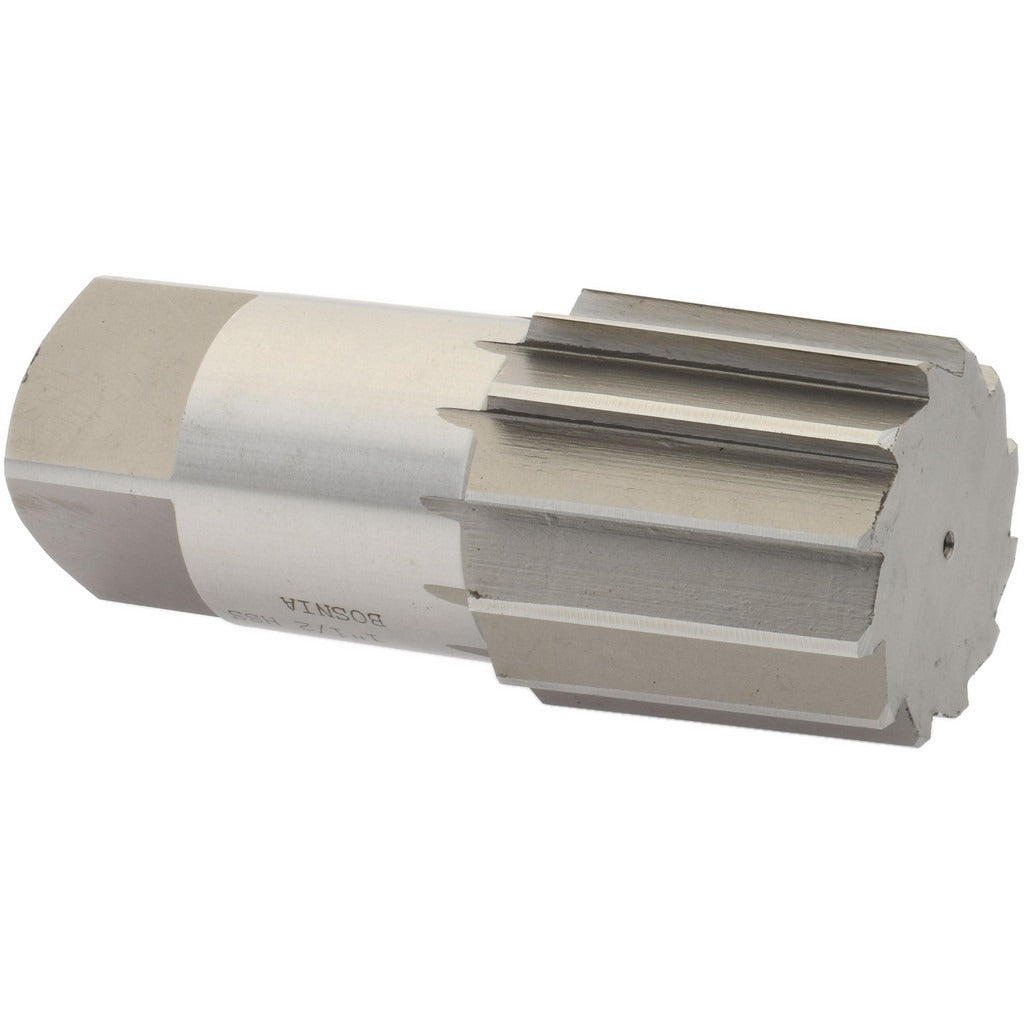

Value Collection SM31P0132 Taper Pipe Reamer 1-1/2 in

Product Description

The VALUE COLLECTION SM31P0132 is a taper pipe reamer designed to finish and size tapered pipe threads in metal pipe and fittings. It produces a smooth, accurate taper bore that allows pipe threads to seat and seal correctly. The reamer measures 1.793 inches in diameter at the large end and 1.684 inches at the small end, with a 1-3/4 inch straight flute length and a 4-1/4 inch overall length. The cutting geometry is right-hand spiral and right-hand cut. It is built from high-speed steel with a bright finish and is installed by plumbers, pipefitters, and maintenance machinists working on 1-1/2 inch pipe assemblies.

This taper pipe reamer is suited for use on 1-1/2 inch nominal pipe in both shop and field environments. It is used when a drilled or rough-bored hole needs to be brought to the correct tapered pipe size to accept threaded fittings or pipe connections. The cylindrical straight shank fits standard drill press chucks, lathes, and hand braces. It is appropriate for ferrous and non-ferrous pipe materials commonly encountered in plumbing, HVAC piping, and industrial maintenance work.

Key Features

• Large end diameter of 1.793 inches and small end diameter of 1.684 inches for accurate 1-1/2 inch pipe taper sizing
• High-speed steel construction for durability across ferrous and non-ferrous pipe materials
• Straight flute design with 1-3/4 inch flute length for controlled chip evacuation
• Right-hand spiral and right-hand cut geometry for standard rotational use in drill presses and hand braces
• Bright finish on cutting surfaces
• Cylindrical straight shank for compatibility with standard chucks

Compatibility

Designed as an OEM-style replacement or direct-use taper pipe reamer for 1-1/2 inch nominal pipe applications requiring a tapered bore finish in standard pipe and fitting assemblies.

Installation Notes

Installation and use should be performed by a qualified plumber, pipefitter, or machinist familiar with pipe reaming procedures. Secure the workpiece firmly before reaming and confirm the shank is fully seated in the chuck. Apply cutting fluid appropriate for the pipe material to extend tool life and improve bore finish. Never force the reamer through material at excessive feed rates, as this can damage the cutting edges or distort the taper.
