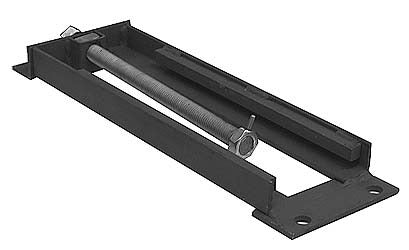

Value Collection SM318 Steel Bearing Take Up Frame

Product Description

The VALUE COLLECTION SM318 is a steel bearing take-up frame designed to house and support take-up bearing units in conveyor and power transmission applications. The frame allows for longitudinal adjustment of the bearing position, enabling proper belt tensioning and shaft alignment. At 6.25 inches wide with a C-projection gage line to nose end measurement of 2 inches, it provides a rigid mounting solution for maintenance-intensive industrial environments. Installation and adjustment are handled by mechanical or maintenance technicians working on belt-driven equipment.

This take-up frame is suited for use in light to medium industrial settings where conveyor belt tension must be periodically adjusted. Typical applications include material handling conveyor lines, packaging machinery, and other belt-driven power transmission assemblies. The frame accepts a compatible take-up bearing unit that slides within the frame channels to allow belt slack adjustment without removing the shaft.

Key Features

• Steel construction provides durability and resistance to deflection under load
• 6.25-inch frame width accommodates standard take-up bearing units
• C-projection gage line to nose end of 2 inches for proper positioning
• Adjustable design allows in-service belt tensioning without full disassembly
• Single-unit packaging suitable for individual replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation take-up frame for standard industrial conveyor and belt-driven power transmission systems requiring a 6.25-inch wide take-up bearing frame.

Installation Notes

Installation is performed by qualified mechanical or industrial maintenance technicians. De-energize and lock out all drive motors and release belt tension before removing or installing the frame, following LOTO procedures per applicable safety standards. Use appropriate fasteners rated for the load and ensure the frame is mounted square to the shaft centerline to prevent premature bearing wear. Do not over-tighten adjusting bolts, as this can induce side loading on the bearing.
