Value Collection SM2200340 Straight Shell Reamer 3-5/8 in

Product Description

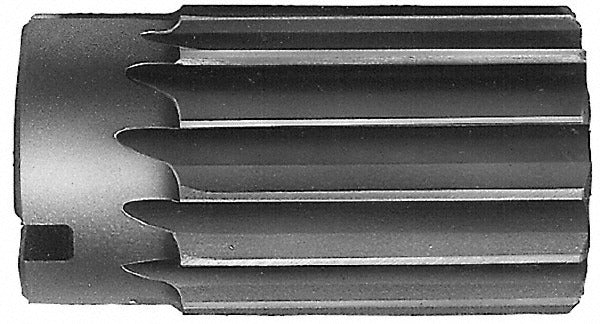

The VALUE COLLECTION SM2200340 is a straight-flute shell reamer designed for precision bore finishing in metalworking applications. Built from high-speed steel, it delivers consistent cutting performance when enlarging and truing pre-bored holes to close tolerances. The reamer measures 3.625 inches in diameter with a 5-inch overall length and accepts a No. 12 arbor through a 2-inch center hole. The right-hand cutting direction is standard for conventional spindle rotation on milling machines, lathes, and drill presses. This tool is suited for production and maintenance shops performing high-accuracy reaming on ferrous and non-ferrous materials.

This shell reamer is intended for use in machine shop environments where bore finishing to precise dimensional tolerances is required. It is well-suited for manual or CNC horizontal and vertical milling machines, boring mills, and lathes. The arbor-mounted design allows for quick changeout between reamer sizes when working through a range of bore diameters on production runs or repair work. Machinists and tool-and-die professionals are the primary installers and operators of this style of reamer.

Key Features

• 3.625-inch reamer diameter for large-bore finishing applications
• Straight flute geometry provides smooth cutting action on through-bores
• High-speed steel construction withstands heat and wear during extended cutting operations
• Right-hand cut matches standard machine spindle rotation
• No. 12 arbor compatibility with a 2-inch center hole for secure arbor mounting
• 5-inch overall length suits standard machine setups without excessive overhang

Compatibility

Designed for use with No. 12 arbors. Suitable for milling machines, lathes, and boring mills equipped to accept shell-style reamers of this diameter class.

Installation Notes

Shell reamers are installed by qualified machinists following standard toolroom procedures. Secure the reamer firmly onto the appropriate arbor before mounting in the spindle, and verify runout is within acceptable limits before cutting. Always disengage power and bring the spindle to a complete stop before mounting or removing the reamer. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain surface finish quality.
