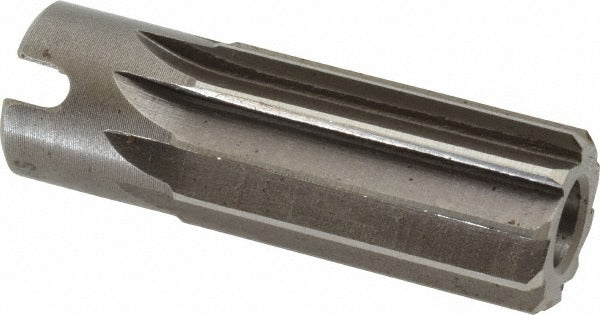

Value Collection SM2200048 Straight Shell Reamer 3/4 in

Product Description

The VALUE COLLECTION SM2200048 is a straight-flute shell reamer designed for precision hole finishing in metal fabrication and machining applications. Built from high-speed steel, it delivers consistent cutting performance across a 3/4 inch diameter bore. The reamer measures 2-1/4 inches in overall length and features a right-hand cutting direction, making it compatible with standard machine spindle rotation. A 3/8 inch center hole accepts a No. 4 arbor for secure, concentric mounting on a reamer arbor. This tool is typically installed by machinists, tool-and-die makers, and maintenance mechanics performing precision hole sizing on lathes, mills, or drill presses.

The SM2200048 is suited for finishing pre-drilled or bored holes to a final diameter of 3/4 inch in ferrous and non-ferrous metals. It is appropriate for light-to-medium stock removal in production and repair environments. The straight flute design works well in through-hole and shallow blind-hole applications where chip clearance is not a critical constraint. This reamer ships as a single unit and is sold individually without an arbor.

Key Features

• 3/4 inch reamer diameter for precise bore finishing to nominal size
• High-speed steel construction provides hardness and wear resistance suitable for general machining
• Straight flute geometry for straightforward chip evacuation in through-hole operations
• Right-hand cut compatible with standard machine spindle rotation
• 3/8 inch center hole fits No. 4 arbor for rigid, concentric mounting
• Compact 2-1/4 inch overall length suits close-tolerance work in confined setups

Compatibility

Designed for use with a No. 4 reamer arbor featuring a 3/8 inch pilot. Suitable as a standard shell reamer for finishing 3/4 inch diameter holes in ferrous and non-ferrous metals on lathes, knee mills, or drill presses.

Installation Notes

Mount the shell reamer onto a No. 4 arbor before securing in the machine spindle; never attempt to chuck the reamer body directly. Power down and lock out the machine before mounting or removing the reamer. Use appropriate cutting fluid for the workpiece material to extend tool life and achieve the desired surface finish. Confirm correct spindle speed and feed rate for the material being reamed prior to cutting.
