Value Collection SM0502400 Chucking Reamer 24.00mm Hss

Product Description

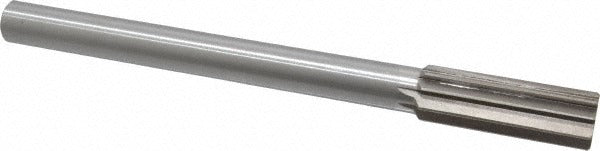

The VALUE COLLECTION SM0502400 is a straight-flute chucking reamer designed to finish-ream holes to a precise 24.00mm (0.9449 inch) diameter. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers consistent dimensional accuracy in ferrous and non-ferrous materials. The straight-cylindrical shank seats securely in standard drill chucks or collet holders on lathes, drill presses, and milling machines. At 10 inches overall length with a 2.625-inch flute length, the tool provides adequate reach for typical through-hole and blind-hole finishing operations. Right-hand cutting direction is standard for conventional spindle rotation. Machinists and tool-and-die professionals are the primary users of this reamer.

This reamer is suited for machine-shop and production environments where hole tolerances require reaming after drilling. It handles applications in job shops, maintenance facilities, and manufacturing cells where 24.00mm finished-bore diameter is specified. The HSS construction holds up in moderate-speed reaming of steel, cast iron, aluminum, and brass. Its bright finish requires no special handling for break-in and performs well with appropriate cutting fluid applied during operation.

Key Features

• 24.00mm (0.9449 inch) finished-bore diameter for precision hole sizing
• High-speed steel (HSS) construction for durability across a range of workpiece materials
• Straight flute geometry suitable for through-holes and stable chip evacuation
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• Right-hand cutting direction matches conventional machine spindle rotation
• Bright, uncoated finish — no break-in coating to manage before first use

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, milling machines, and machining centers equipped with a chuck or collet capable of accepting a straight-cylindrical shank at the corresponding diameter.

Installation Notes

Installation and use should be performed by a qualified machinist. Power down and de-energize the machine spindle completely before mounting or removing the reamer. Secure the straight-cylindrical shank firmly in a drill chuck or collet to prevent runout. Apply a suitable cutting fluid throughout the reaming operation to extend tool life and achieve specified surface finish; never ream dry in steel or cast iron.
