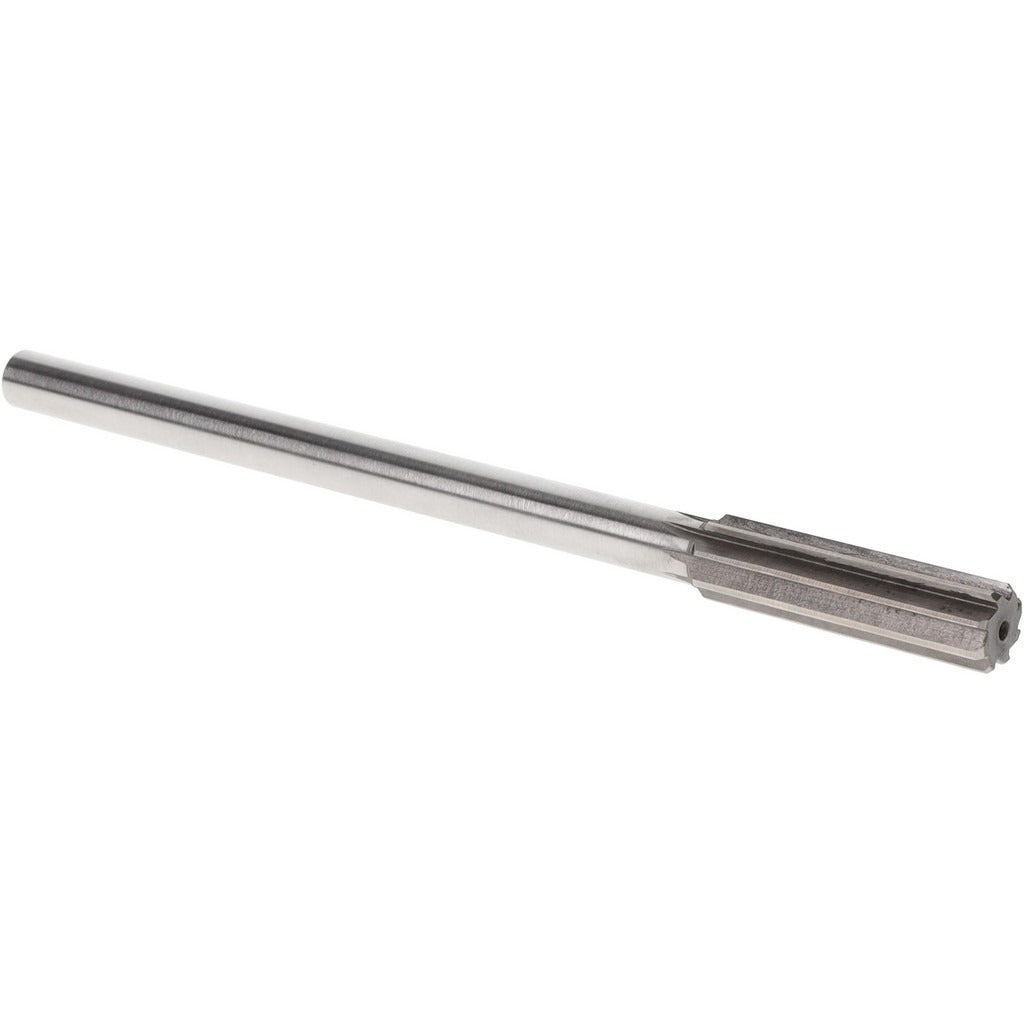

Value Collection SM0501400 Chucking Reamer 14mm Hss

Product Description

The VALUE COLLECTION SM0501400 is a straight-flute chucking reamer designed to finish-ream holes to a precise 14.00mm (0.5512 inch) diameter. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this six-flute tool delivers clean, accurate bores in a wide range of ferrous and non-ferrous materials. The straight-cylindrical shank seats securely in drill press chucks, lathe tailstocks, and milling machine collets. With an 8-inch overall length and a 2-inch flute length, it provides adequate reach and chip clearance for through-hole and blind-hole reaming operations in typical machine-shop and maintenance environments.

This reamer is suited for production and maintenance machining applications where a finished hole diameter of 14.00mm is required. Right-hand cutting direction makes it compatible with standard clockwise-rotating spindles. It is a practical choice for tool rooms, general fabrication shops, and field maintenance crews working on machine components, fixtures, and assemblies that demand close-tolerance bore finishing.

Key Features

• 14.00mm (0.5512 inch) reamer diameter for precise hole finishing
• High-speed steel (HSS) construction for durability across common workpiece materials
• 6 straight flutes for smooth cutting action and effective chip evacuation
• Bright/uncoated finish — no additional coating to alter dimensional tolerance
• Straight-cylindrical shank for secure seating in standard chucks and collets
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and milling machines equipped with chucks or collets accepting a straight-cylindrical shank of the appropriate diameter.

Installation Notes

Chucking reamers are installed and operated by machinists and maintenance technicians. Before mounting, ensure the spindle is fully stopped and the machine is powered down or locked out per applicable lockout/tagout procedures. Secure the shank firmly in the chuck or collet to prevent runout, and apply cutting fluid appropriate for the workpiece material to extend tool life and improve surface finish. Never use a chucking reamer to enlarge a hole by more than the recommended stock allowance, as overloading the flutes will accelerate wear and compromise hole accuracy.
