Value Collection SM0407610 Chucking Reamer Hss 0.7610 in

Product Description

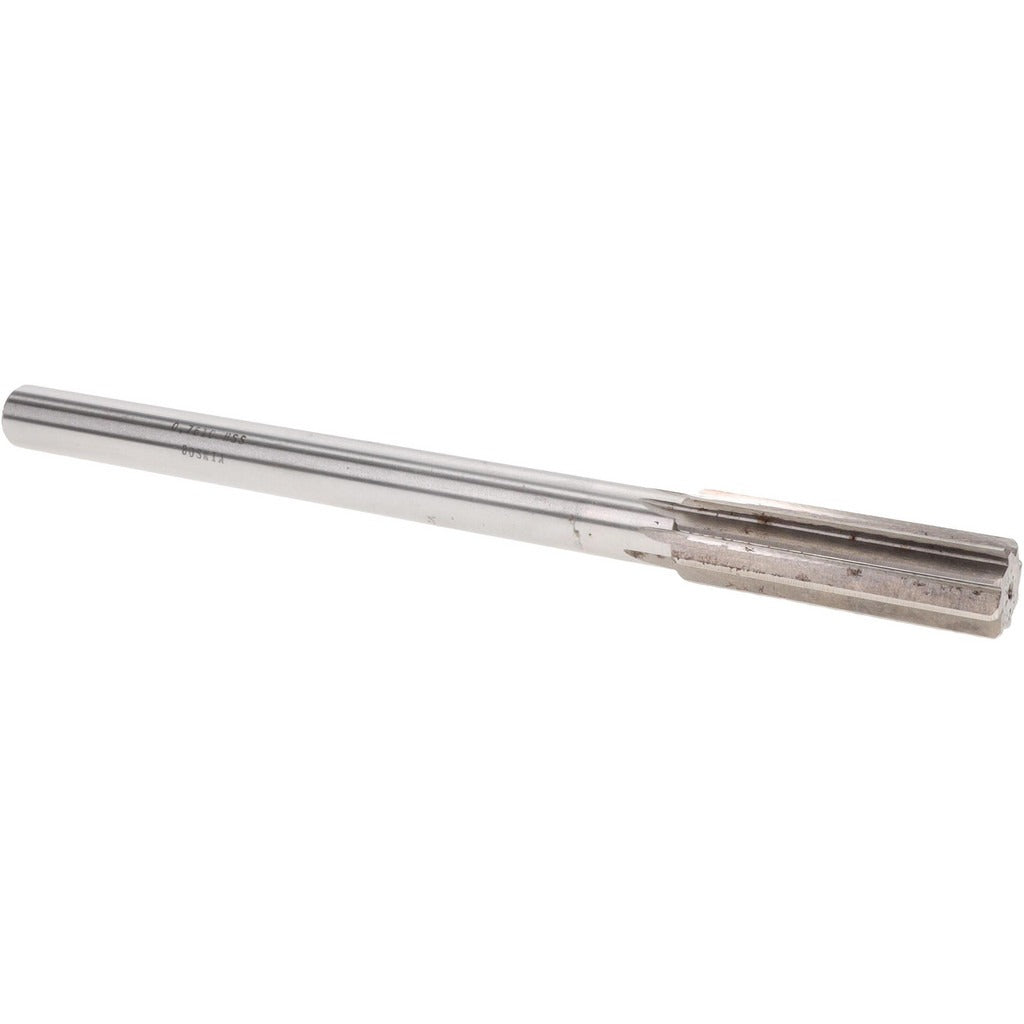

The VALUE COLLECTION SM0407610 is a straight-flute chucking reamer designed to finish-ream drilled or bored holes to a precise 0.7610-inch diameter. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers consistent dimensional accuracy in ferrous and non-ferrous materials. The six-flute geometry distributes cutting load evenly, reducing chatter and improving surface finish. With an overall length of 9.5 inches and a 2.5-inch flute length, it handles typical through-hole and blind-hole applications in production and job-shop environments. The straight-cylindrical shank seats directly in a drill chuck or collet without additional adapters.

This reamer is suited for machine-shop, toolroom, and maintenance applications where a drilled hole must be brought to a close-tolerance finish diameter. It is used in drill presses, lathes, and machining centers. The right-hand cutting direction is standard for conventional CW-spindle machines. The 0.7610-inch diameter places it in the 0.7000 to 0.9999 inch range, making it appropriate for medium-bore finish work in manufacturing, repair, and assembly operations where tight hole tolerances are required.

Key Features

• 0.7610-inch finish diameter with straight, six-flute cutting geometry for smooth, accurate holes
• High-speed steel (HSS) construction provides hardness and wear resistance for general-purpose machining
• Bright, uncoated finish suitable for use with standard cutting fluids
• Straight-cylindrical shank compatible with drill chucks and collets
• Right-hand cutting direction for use on standard CW-spindle machines
• 9.5-inch overall length with 2.5-inch flute length accommodates typical production hole depths

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and machining centers equipped with a drill chuck or straight-bore collet sized to accept a straight-cylindrical shank.

Installation Notes

Chucking reamers are installed by machinists or toolroom technicians. Secure the straight-cylindrical shank firmly in a drill chuck or collet before use. Always apply an appropriate cutting fluid for the workpiece material to extend tool life and improve hole finish. Never run a reamer in reverse, as this dulls cutting edges rapidly.
