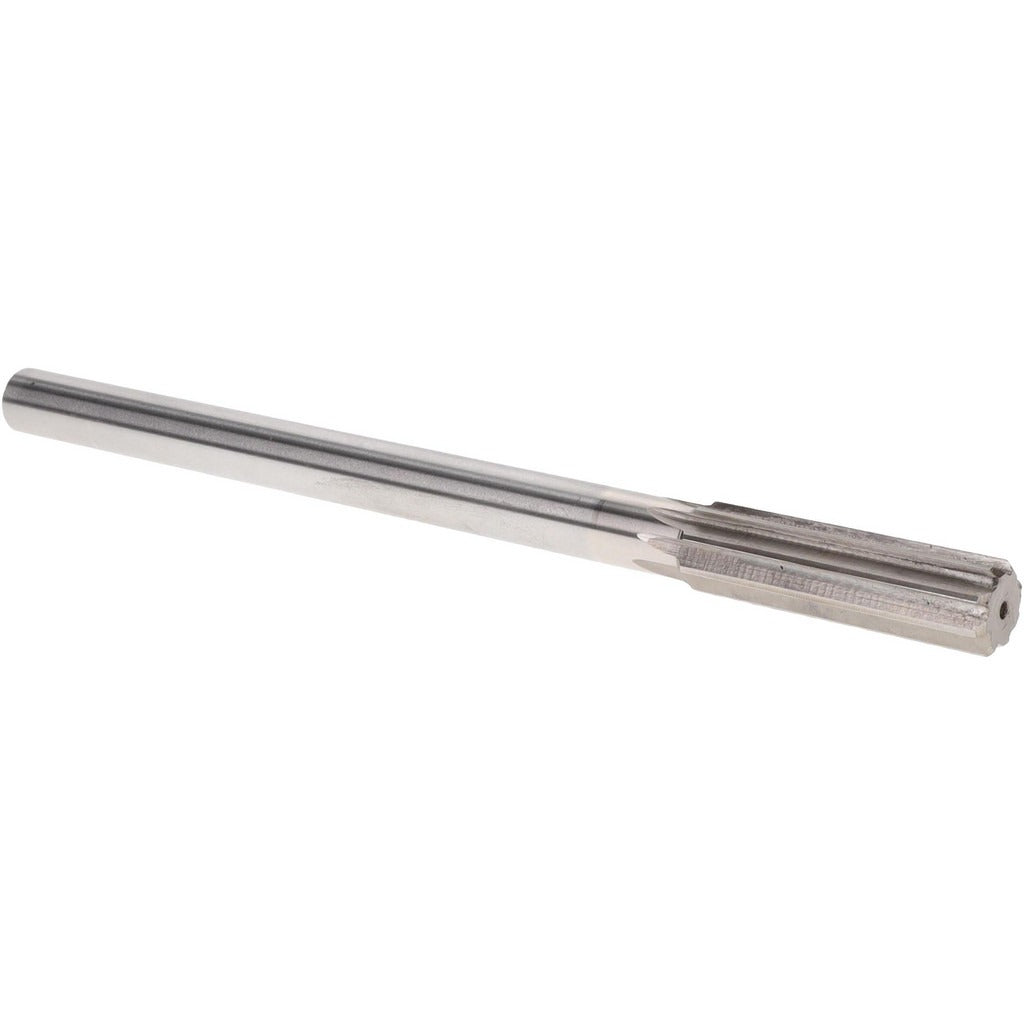

Value Collection SM0406500 Chucking Reamer Hss 0.650 in

Product Description

The VALUE COLLECTION SM0406500 is a straight-flute chucking reamer designed to finish-bore holes to a precise 0.6500-inch diameter. Machined from high-speed steel (HSS) with a bright, uncoated finish, it delivers consistent dimensional accuracy in ferrous and non-ferrous materials across a range of machine shop applications. The straight-cylindrical shank seats securely in standard drill chucks and collet holders. With a 9-inch overall length and a 2.25-inch flute length, this reamer is suited for through-holes and shallow blind-hole finishing where tight tolerances and smooth surface finish are required.

This chucking reamer is used in manual and CNC machining operations — lathes, drill presses, and milling machines — where a reamed hole finish is required after drilling. It is appropriate for job shops, maintenance and repair operations, and production environments working with steel, aluminum, brass, and similar machinable materials. Right-hand cutting direction means it runs with standard spindle rotation. No special setup is required beyond securing the shank in a compatible chuck or collet.

Key Features

• 0.6500-inch finished-hole diameter for precise tolerance control
• High-speed steel (HSS) construction provides durability across a range of workpiece materials
• Straight flute geometry suits most general-purpose reaming applications
• Bright, uncoated finish for use with standard cutting fluids
• Straight-cylindrical shank fits standard drill chucks and collet holders
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as a general-purpose chucking reamer for use in standard drill chucks and collet systems on lathes, drill presses, and milling machines accepting a straight-cylindrical shank.

Installation Notes

Chucking reamers are installed and operated by machinists. Power down and lock out the machine spindle before mounting or removing the reamer. Secure the straight-cylindrical shank firmly in a drill chuck or collet to minimize runout. Use an appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Pre-drill the hole to the recommended undersize before reaming to avoid overloading the flutes.
