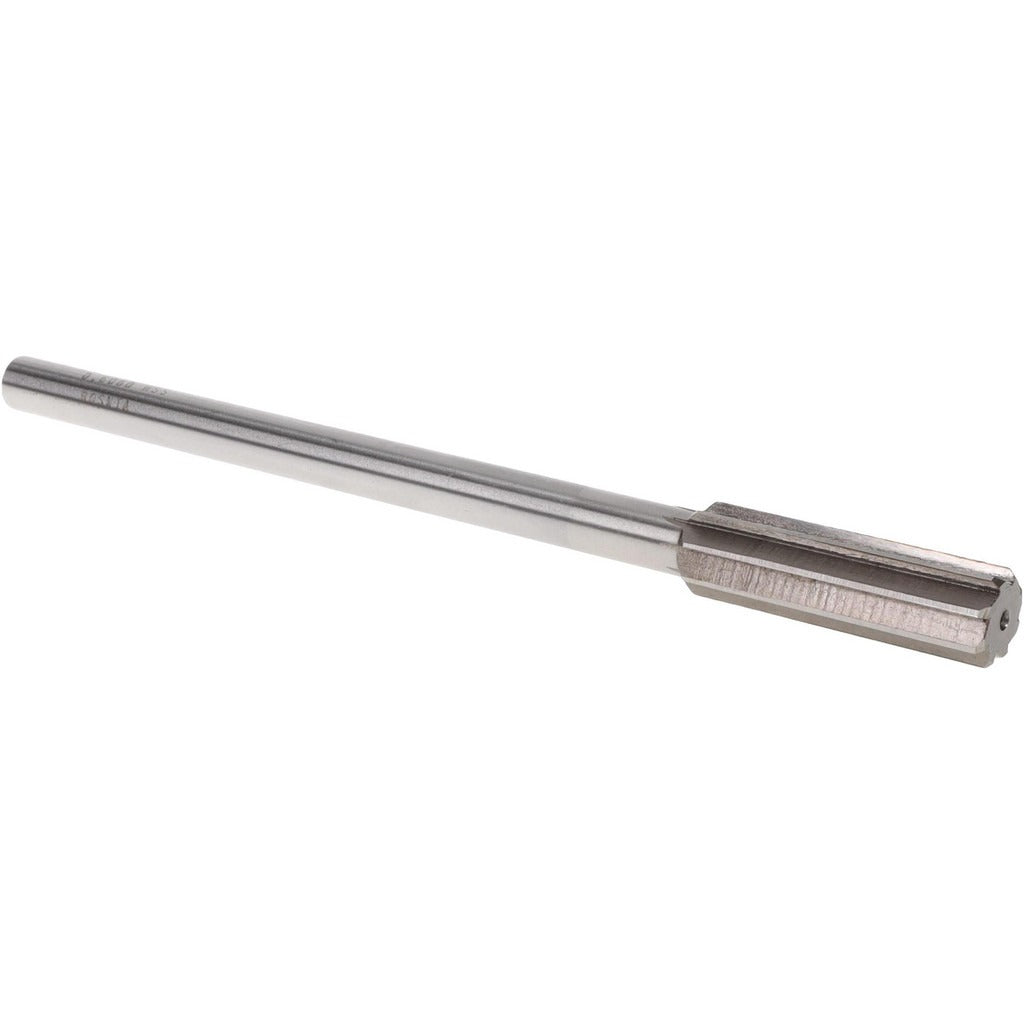

Value Collection SM0406060 Chucking Reamer 0.606 in Hss

Product Description

The VALUE COLLECTION SM0406060 is a straight-flute chucking reamer ground to a 0.6060-inch diameter for precision hole finishing in machine shop and production environments. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers clean, accurate bores where tight tolerances are required. The straight-cylindrical shank seats directly in drill chucks, collets, or floating holders. At 8 inches overall length with a 2-inch flute section, this reamer is sized for through-hole and blind-hole applications across a wide range of ferrous and non-ferrous workpieces. Right-hand cutting direction is standard for conventional spindle rotation. Weighing 0.25 pounds, it is a practical everyday reaming tool for machinists, toolroom technicians, and maintenance trades.

This reamer is suited for general-purpose hole finishing in manual mills, CNC machining centers, drill presses, and lathes. It is appropriate for production runs and one-off toolroom work where a reamed finish and precise bore diameter are required. The 0.6060-inch size falls within the 0.5000- to 0.6999-inch diameter range and is commonly used when drilling alone cannot hold the required hole tolerance or surface finish. Typical applications include bearing seat preparation, pin hole sizing, and fixture-plate work in metalworking shops and industrial maintenance settings.

Key Features

• 0.6060-inch diameter ground for precise hole finishing to close tolerances
• High-speed steel (HSS) construction for durability across ferrous and non-ferrous materials
• Straight flute geometry suited for through-holes and stable cutting in most materials
• Bright, uncoated finish allows easy visual inspection of cutting edges
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• Right-hand cutting direction for use with conventional spindle rotation

Compatibility

Designed as a general-purpose chucking reamer for use in any machine tool spindle accepting a straight-cylindrical shank, including drill presses, mills, lathes, and machining centers with appropriate chuck or collet tooling.

Installation Notes

Chucking reamers are installed by machinists or toolroom technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully and securely in the chuck or collet before operation. Use appropriate cutting fluid for the workpiece material to extend tool life and improve finish quality. The reamed hole should be drilled undersize first, leaving only a small amount of stock for the reamer to remove.
