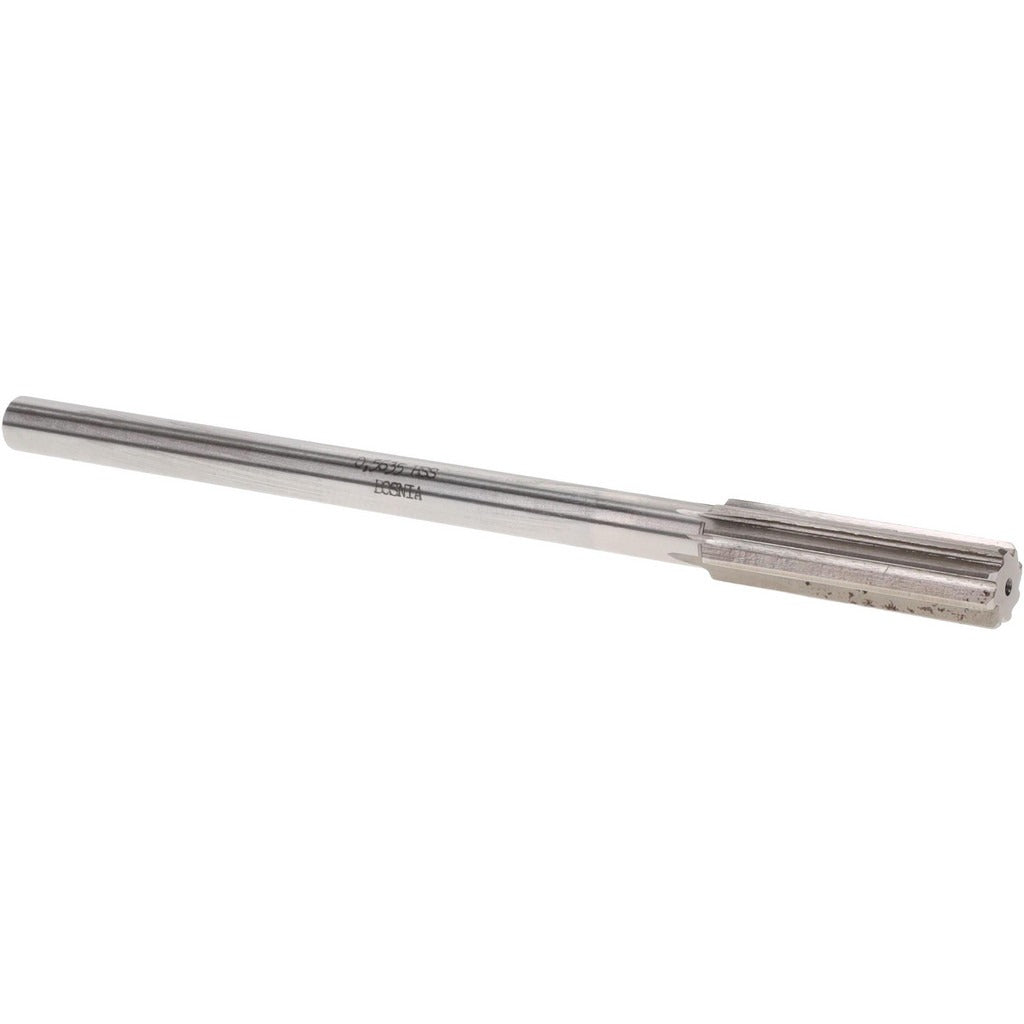

Value Collection SM0405635 Chucking Reamer 0.5635 in Hss

Product Description

The VALUE COLLECTION SM0405635 is a straight-flute chucking reamer designed to finish-ream bored or drilled holes to a precise 0.5635-inch diameter. Machined from high-speed steel (HSS) with a bright, uncoated finish, it delivers clean material removal and accurate sizing in ferrous and non-ferrous metals. The straight-cylindrical shank seats securely in a standard drill press chuck or milling machine collet. With an overall length of 8 inches and a 2-inch flute length, this reamer suits through-hole and moderate-depth blind-hole applications where tight dimensional tolerances are required.

This reamer is suited for machine shop, toolroom, and production floor use where holes must be brought to a final finished diameter after drilling or boring. Right-hand cutting direction is standard for conventional clockwise spindle rotation. The 0.5635-inch diameter falls within the 0.5000- to 0.6999-inch decimal-inch reamer range, making it a practical toolroom staple for precision fitting of pins, bushings, and similar close-tolerance components in light to medium machining operations.

Key Features

• 0.5635-inch finished diameter for accurate hole sizing in metal workpieces
• High-speed steel (HSS) construction withstands the heat and wear of continuous machine reaming
• Straight flute geometry provides smooth cutting action and easy chip clearance
• Bright, uncoated finish suitable for use with standard cutting fluids
• Straight-cylindrical shank fits standard drill chucks and collet holders without adaptation
• Right-hand cutting direction compatible with conventional clockwise spindle rotation

Compatibility

Designed as a standard machine chucking reamer for use in drill presses, milling machines, and lathes equipped with a chuck or collet capable of holding a straight-cylindrical shank in the 0.5635-inch diameter range.

Installation Notes

Machine chucking reamers are installed and operated by qualified machinists. Secure the straight-cylindrical shank fully in the chuck or collet before beginning the cut, and confirm runout is within acceptable limits for the tolerance required. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Never use a chucking reamer to remove excessive stock — pre-drill or bore the hole to within a few thousandths of the finished diameter before reaming.
