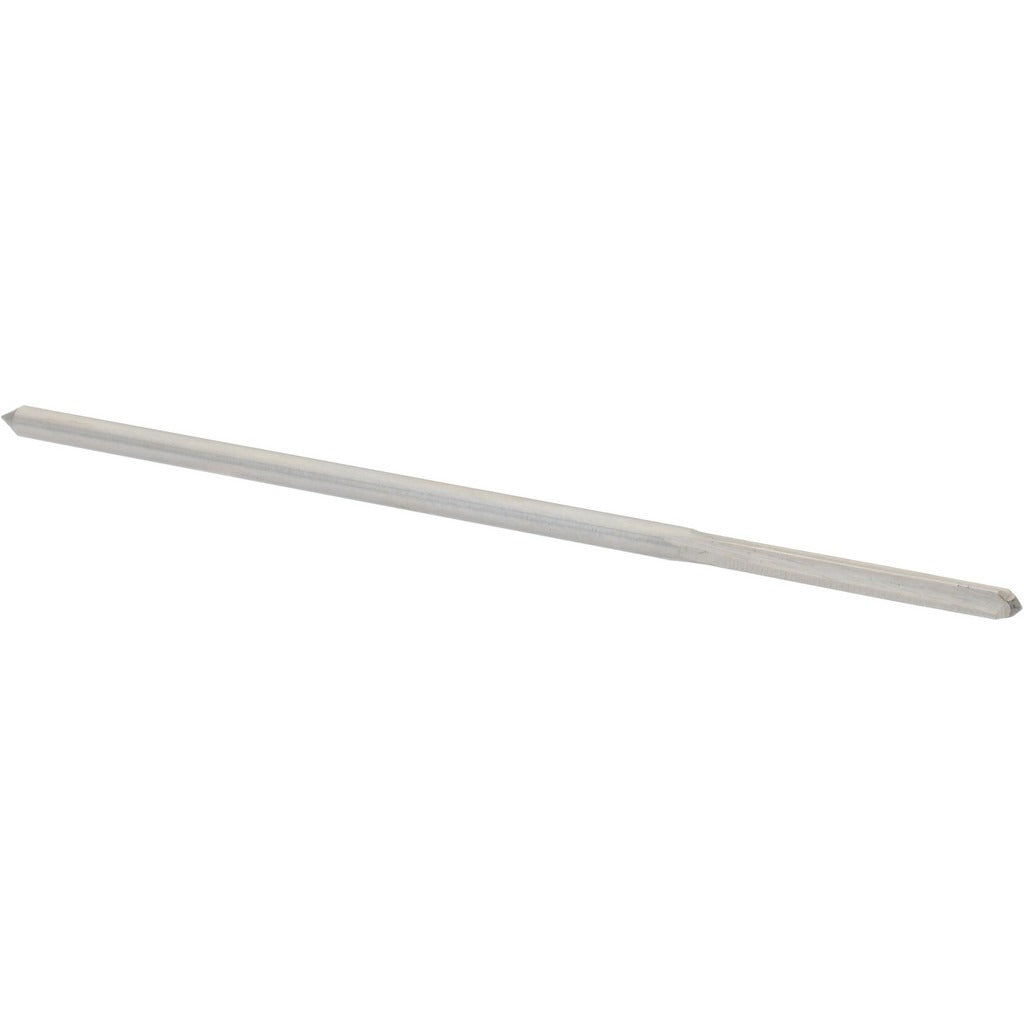

Value Collection SM01N0035 Chucking Reamer Wire 35 Hss

Product Description

The VALUE COLLECTION SM01N0035 is a straight-flute chucking reamer designed to finish-ream holes to a wire gauge size 35 diameter of 0.1100 inches. Built from high-speed steel (HSS) with a bright, uncoated finish, this 4-flute tool delivers consistent sizing and smooth surface finish in pre-drilled through-holes and blind holes. The straight-cylindrical shank seats securely in a drill chuck or collet holder. At 3.5 inches overall length with a 0.875-inch flute length, it is sized for light-duty precision work on small-diameter bores in metal fabrication and machine shop environments.

This reamer is suited for machinists, toolmakers, and maintenance technicians working with small-bore components that require tight dimensional tolerances. Wire gauge sizing makes it a common choice when matching legacy hardware, dowel holes, or OEM bore callouts specified in wire gauge rather than decimal inch. Typical applications include production line tooling maintenance, jig and fixture work, and repair of precision assemblies where a 0.1100-inch finished bore diameter is specified.

Key Features

• Wire size 35 cutting diameter — 0.1100 inches finished bore diameter
• HSS construction for durability across ferrous and non-ferrous materials
• 4-flute straight-flute geometry for clean, consistent chip evacuation
• Bright, uncoated finish — ready to use as supplied
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• Right-hand cutting direction for standard spindle rotation

Compatibility

Designed as a standard chucking reamer for use in any drill press, milling machine, or CNC machining center equipped with a chuck or collet that accepts a straight-cylindrical shank in the applicable diameter range.

Installation Notes

Chucking reamers are installed by machinists or maintenance technicians — ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Seat the shank fully and evenly in the chuck or collet to minimize runout. Always use appropriate cutting fluid for the workpiece material, and ream at reduced RPM relative to the equivalent drill operation to maximize hole finish and tool life. Do not use a reamer to remove more stock than manufacturer-recommended allowance for the bore diameter.
