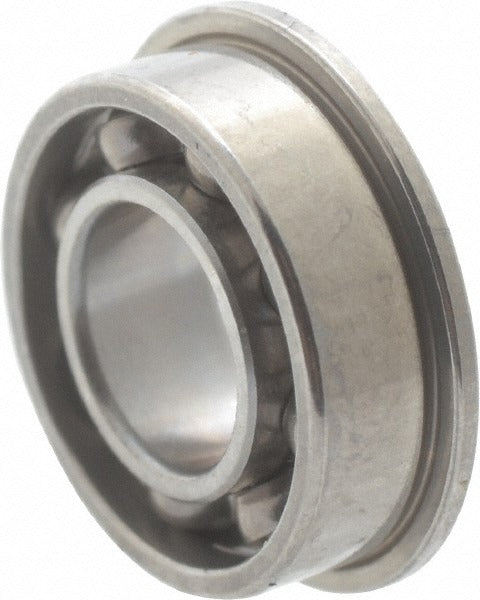

Value Collection SFRW133 Miniature Flanged Ball Bearing

Product Description

The VALUE COLLECTION SFRW133 is an open-style miniature flanged ball bearing designed for precision rotating applications where compact dimensions and reliable load transfer are required. With a bore diameter of 0.0937 inches, an outside diameter of 0.1875 inches, and an overall width of 0.0625 inches, this single-row bearing fits into tight spaces where standard bearings cannot. It carries a static load capacity of 13 pounds and a dynamic load capacity of 43 pounds. Rated ABEC-5 for dimensional accuracy, it is well-suited for small motors, instruments, and light-duty mechanical assemblies installed by maintenance technicians and mechanical tradespeople.

This bearing is appropriate for use in small electric motors, fans, pumps, precision instruments, and similar equipment found in HVAC, refrigeration, and general mechanical applications. The flanged design simplifies housing retention by allowing the bearing to seat against a shoulder in the mounting bore, eliminating the need for additional retaining hardware. The open style makes it easy to relubricate in the field when service intervals require it. Suitable for residential and light commercial equipment where miniature bearing replacements are needed.

Key Features

• Flanged outer ring with a flange outside diameter of 0.2340 inches for secure axial positioning in the housing
• ABEC-5 precision rating for consistent dimensional tolerances and reduced runout
• Stainless steel housing material for corrosion resistance in moist or washdown environments
• Open style allows field lubrication and visual inspection during service
• Single-row construction with a round bore for straightforward shaft fitment
• Static load capacity of 13 pounds and dynamic load capacity of 43 pounds for light-duty rotating loads

Compatibility

Designed as an OEM-style replacement miniature flanged ball bearing for small motors, fans, instruments, and light mechanical assemblies requiring a 0.0937 inch bore and 0.1875 inch outside diameter.

Installation Notes

Installation is typically performed by a qualified maintenance technician or mechanical tradesperson. Power down and de-energize all equipment before replacing any bearing. Press or seat the bearing squarely into the housing using appropriate bearing installation tooling to avoid cocking or edge-loading the races. Do not strike the bearing directly with a hammer or apply force through the rolling elements during installation.
