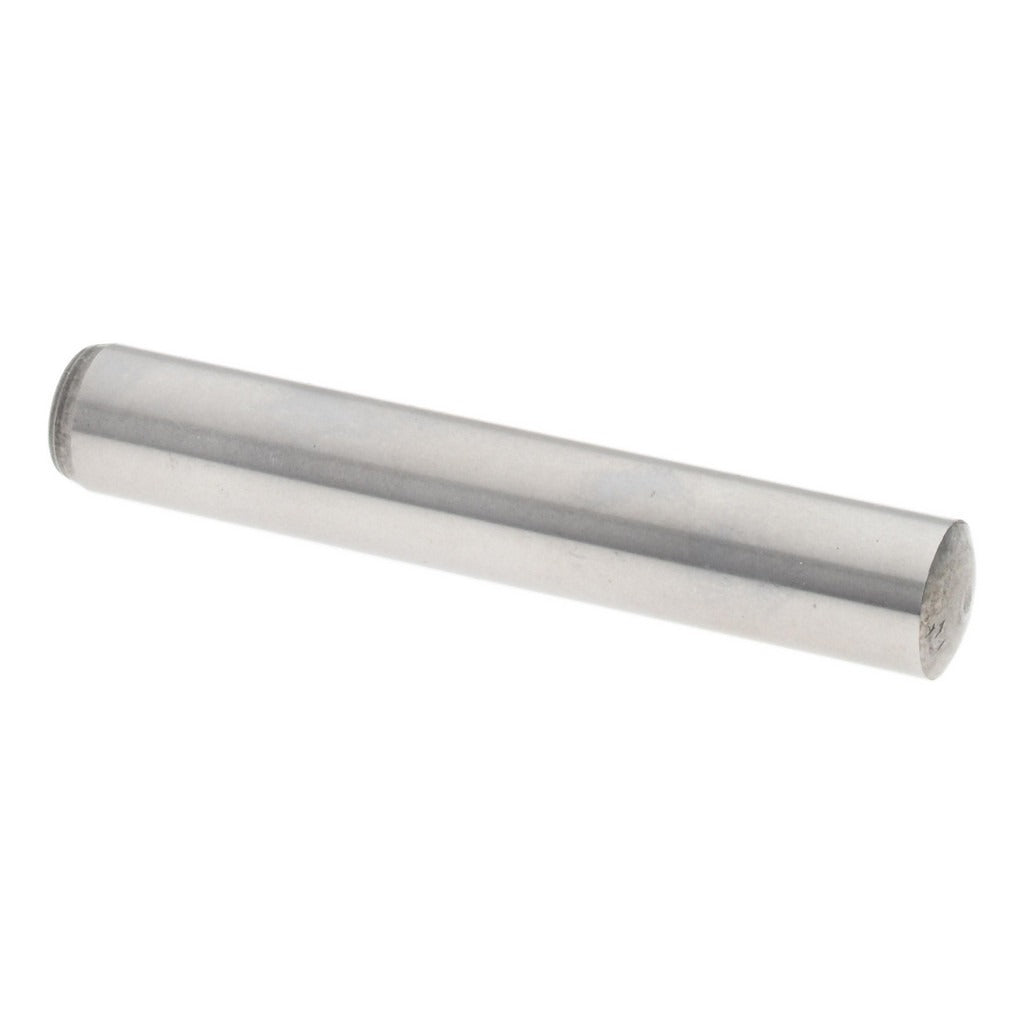

Value Collection SF043005 Dowel Pin 8x50mm Alloy Steel

Product Description

The VALUE COLLECTION SF043005 is a standard pull out dowel pin designed for precision locating and alignment applications in industrial and mechanical assemblies. Manufactured from alloy steel with a rounded end profile, this pin measures 8 mm in diameter and 50 mm in overall length. It meets DIN 6325 fastener standards and achieves a hardness rating of 58-62 HRC, providing reliable resistance to wear and deformation under load. Breaking strength is measured in double shear. The SF043005 is sold individually, with a minimum order quantity of 100 pieces per order.

This dowel pin is suited for use in jigs, fixtures, dies, and precision machine components where consistent part-to-part alignment is required. It is a standard industrial fastener used across manufacturing, tooling, and maintenance environments. The DIN 6325 designation makes it directly compatible with metric hole patterns and tolerance specifications common in European-standard and globally manufactured equipment. Machinists, toolmakers, and maintenance technicians regularly specify this pin type for both original assembly and replacement applications.

Key Features

• DIN 6325 standard compliance for metric precision locating applications
• 58-62 HRC hardness rating for wear resistance and load durability
• Rounded end profile for guided entry into close-tolerance bores
• Double shear breaking strength measurement method
• Alloy steel construction suited to high-load industrial environments

Compatibility

Designed as a DIN 6325 standard pull out dowel pin suitable for metric precision locating applications in jigs, fixtures, dies, and machined assemblies requiring an 8 mm diameter pin.

Installation Notes

Installation of press-fit dowel pins typically requires a hydraulic or arbor press to achieve proper interference fit without damaging the bore or the pin. Ensure the mating hole is reamed to the correct DIN 6325 tolerance before installation. De-energize and lock out all powered equipment before servicing assemblies that contain locating pins. Use appropriate personal protective equipment when pressing pins into or out of hardened tooling.
