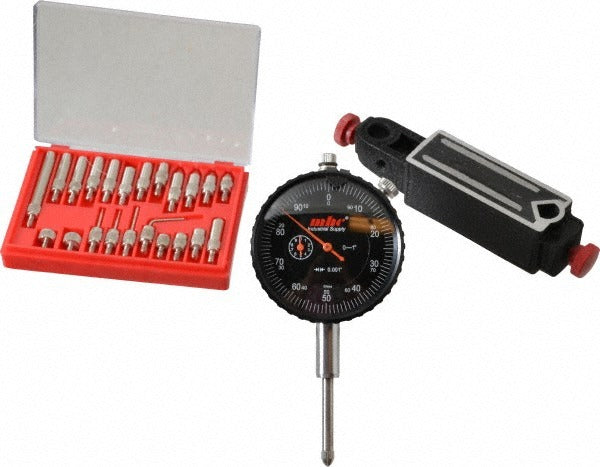

Value Collection See Card Dial Indicator Base Kit

Product Description

The VALUE COLLECTION SEE CARD dial indicator base kit is a mechanical measuring tool used for precision inspection and setup work in machining, fabrication, and tool-and-die applications. The kit includes a dial indicator set with a black-face dial graduated in 0.001 inch increments across a 0-100 reading range. The base measures 4 inches in length, 1 inch in width, and 1 inch in height, providing a stable mounting footprint for consistent indicator positioning. This kit is installed and used by machinists, toolmakers, and quality control technicians who require repeatable, fine-resolution measurements during part inspection or machine alignment.

This dial indicator base kit is suited for use in machine shops, manufacturing cells, and maintenance environments where surface measurement, runout checking, or fixture setup is required. The compact base dimensions make it practical for benchtop and in-machine applications. The 0.001 inch graduation allows the user to detect small deviations in part geometry or alignment during setup and inspection routines.

Key Features

• 0-100 dial reading range with 0.001 inch graduation for fine-resolution measurement
• Black dial face for high-contrast readability in shop environments
• Base length of 4 inches for stable indicator support
• Compact base width of 1 inch and base height of 1 inch for versatile positioning
• Kit includes dial indicator set for ready-to-use deployment

Compatibility

Designed as a general-purpose dial indicator base kit suitable for standard dial indicator setups in machining and inspection applications.

Installation Notes

Installation is performed by machinists or quality technicians. Secure the base firmly to a stable reference surface such as a granite surface plate or machine table before taking measurements. Ensure the indicator spindle is oriented perpendicular to the surface being measured to avoid cosine error. Handle the dial indicator with care to avoid dropping, which can damage the internal gear mechanism.
