Value Collection SC84949817 Type B Tool Holder Bushing

Product Description

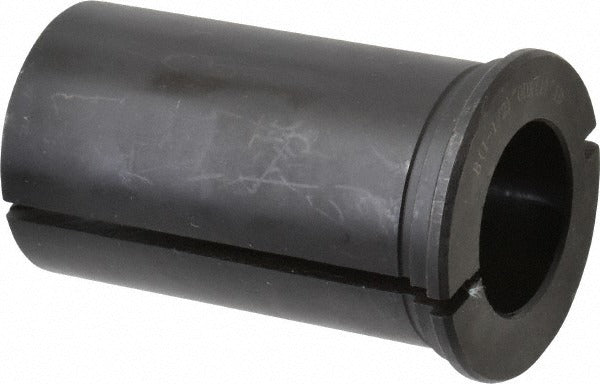

The VALUE COLLECTION SC84949817 is a Type B rotary tool holder bushing designed for use in drill press, milling machine, and CNC tooling setups. It features a 1 inch inside diameter and a 1.5 inch outside diameter, with a 2.5 inch length under the head. The head thickness measures 0.265 inches. This bushing locates and guides cutting tools accurately within a tool holder or jig plate. It is a standard replacement or new-installation component installed by machinists and tool-and-die professionals working in production or maintenance environments.

This Type B bushing is suited for applications where a fixed, press-fit or slip-fit guide is required in drill jigs and tooling fixtures. Its dimensional profile follows standard bushing geometry appropriate for general machining operations in both job-shop and production settings. The 1 inch bore accommodates drill bits, reamers, or other round-shank tooling of that diameter.

Key Features

• Type B bushing geometry for standard drill jig and tooling fixture applications
• 1 inch inside diameter for compatibility with common drill and reamer shank sizes
• 1.5 inch outside diameter provides stable seating in the tooling plate
• 2.5 inch length under head offers adequate tool guidance depth
• 0.265 inch head thickness retains the bushing positively against the jig surface

Compatibility

Designed as an OEM-style replacement or new-installation Type B rotary tool holder bushing for standard drill jig and machining fixture applications requiring a 1 inch ID and 1.5 inch OD bushing.

Installation Notes

Installation is typically performed by a machinist or tooling technician using a bushing press or arbor press to seat the bushing in the jig plate bore. Ensure the receiving bore is clean and dimensionally correct before pressing. Power down and lock out any machine before installing or removing tooling bushings. Follow shop safety procedures and applicable OSHA machine guarding standards during installation.
