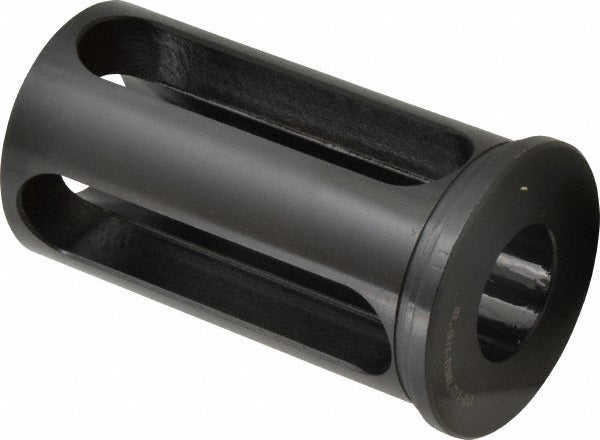

Value Collection SC84948934 Type C Tool Holder Bushing

Product Description

The VALUE COLLECTION SC84948934 is a Type C rotary tool holder bushing designed for use in CNC machining centers, turret lathes, and rotary tool holding applications. With a 1.25-inch inside diameter and a 2.5-inch outside diameter, this bushing provides precise tool support and alignment in demanding production environments. The 4.5-inch length under the head and 4.125-inch slot length accommodate a range of tooling setups. Weighing 2.376 pounds, it is built for stability in high-cycle operations. Licensed machinists and tool room technicians are the primary installers of this component.

This Type C tool holder bushing is suited for use in rotary tool holding systems found in production machining and tool room environments, both in light industrial and heavy manufacturing settings. The bushing slips into a compatible tool holder body and is retained by its head, providing a secure interface for rotating tooling. It is applicable where precise inside diameter clearance and concentricity are required for reliable tool support during continuous operation.

Key Features

• Type C bushing configuration for standard rotary tool holder applications
• 1.25-inch inside diameter for precise tool shank fitment
• 2.5-inch outside diameter for stable seating in the tool holder body
• 4.5-inch length under head provides extended tool support depth
• 4.125-inch slot length allows for secure locking engagement
• Head thickness of 0.333 inches for positive seating and retention

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type C rotary tool holder systems requiring a 1.25-inch inside diameter and 2.5-inch outside diameter bushing.

Installation Notes

Installation is performed by qualified machinists or tool room technicians. Power down and de-energize all machine axes and spindle drives before removing or installing tooling components. Verify inside diameter clearance and outside diameter fit against the holder body specification before seating the bushing. Do not force the bushing into an undersized bore, as this may damage the holder or compromise tool concentricity.
