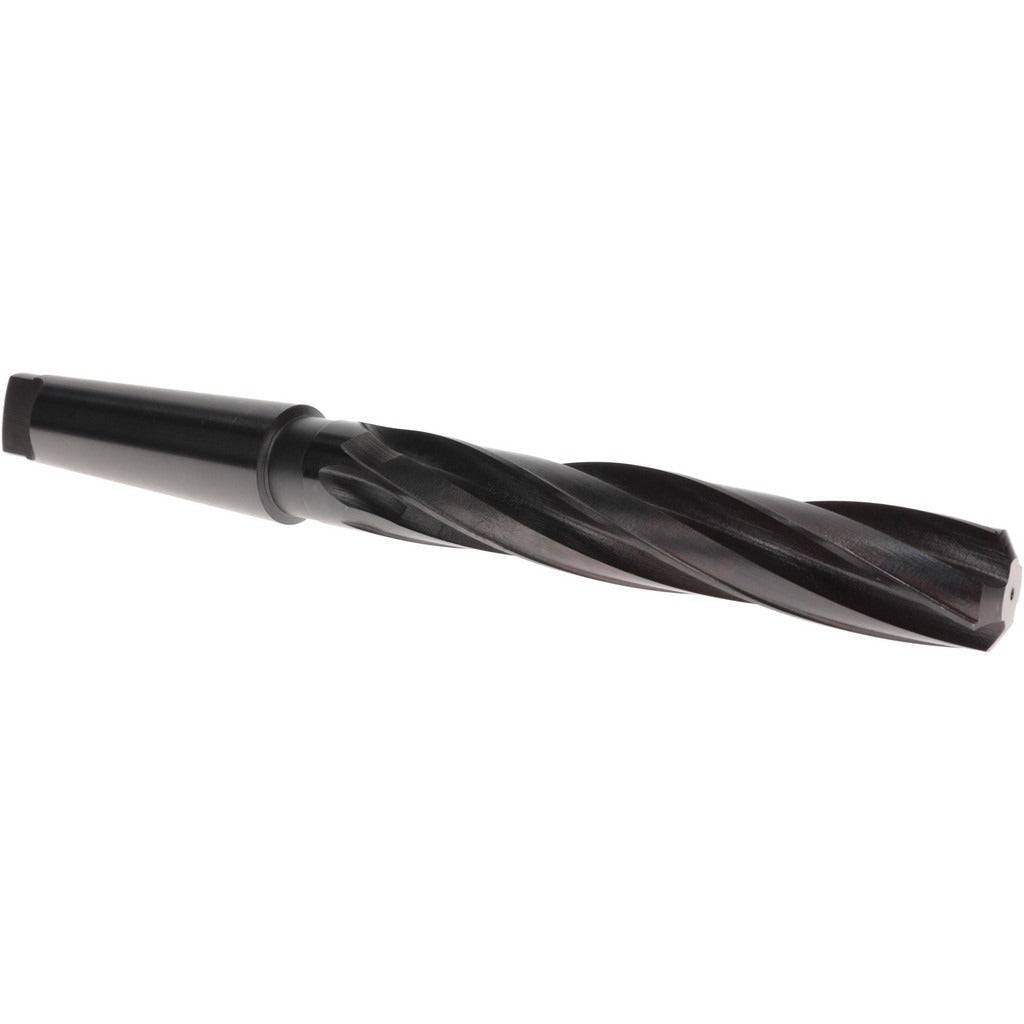

Value Collection SC0850134 Morse Taper Core Drill Bit

Product Description

The VALUE COLLECTION SC0850134 is a high-speed steel Morse taper core drill bit designed for enlarging existing holes to precise diameters in metal and similar materials. This bit measures 1-17/32 inches (1.5313 inches decimal) in drill diameter with a 16-3/8 inch overall length and a 9-3/8 inch flute length. A 5MT shank taper seats directly into compatible Morse taper spindles without an additional chuck. The oxide finish improves surface hardness and provides light corrosion resistance. Four right-hand spiral flutes cut in right-hand rotation and evacuate chips efficiently during deep-hole operations. This tool is typically installed and used by machinists, tool-and-die workers, and maintenance technicians in shop and industrial environments.

The SC0850134 is suited for core drilling operations in ferrous and non-ferrous metals where an existing pilot hole or cored opening is already present. The 5MT shank is compatible with lathes, drill presses, milling machines, and machining centers equipped with a No. 5 Morse taper spindle. The 118-degree included angle is a standard geometry appropriate for general-purpose metal drilling. The 16-3/8 inch overall length allows access to deeper workpieces or fixtures where shorter drills cannot reach.

Key Features

• 1-17/32 inch (1.5313 inch) drill diameter for precise hole sizing
• High-speed steel construction withstands elevated cutting temperatures
• No. 5 Morse taper shank seats directly into matching spindles without a chuck
• Four right-hand spiral flutes promote efficient chip evacuation
• 118-degree included angle suits general-purpose metal drilling
• Oxide finish adds surface hardness and light corrosion resistance

Compatibility

Designed for use with drill presses, lathes, milling machines, and machining centers equipped with a No. 5 Morse taper (5MT) spindle socket.

Installation Notes

Installation and operation should be performed by a qualified machinist or trained maintenance technician. Secure the 5MT shank fully into the spindle taper and verify seating before operation — a loose taper can cause the bit to spin out under load. Always power down and lock out the machine before changing tooling. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain hole quality.
