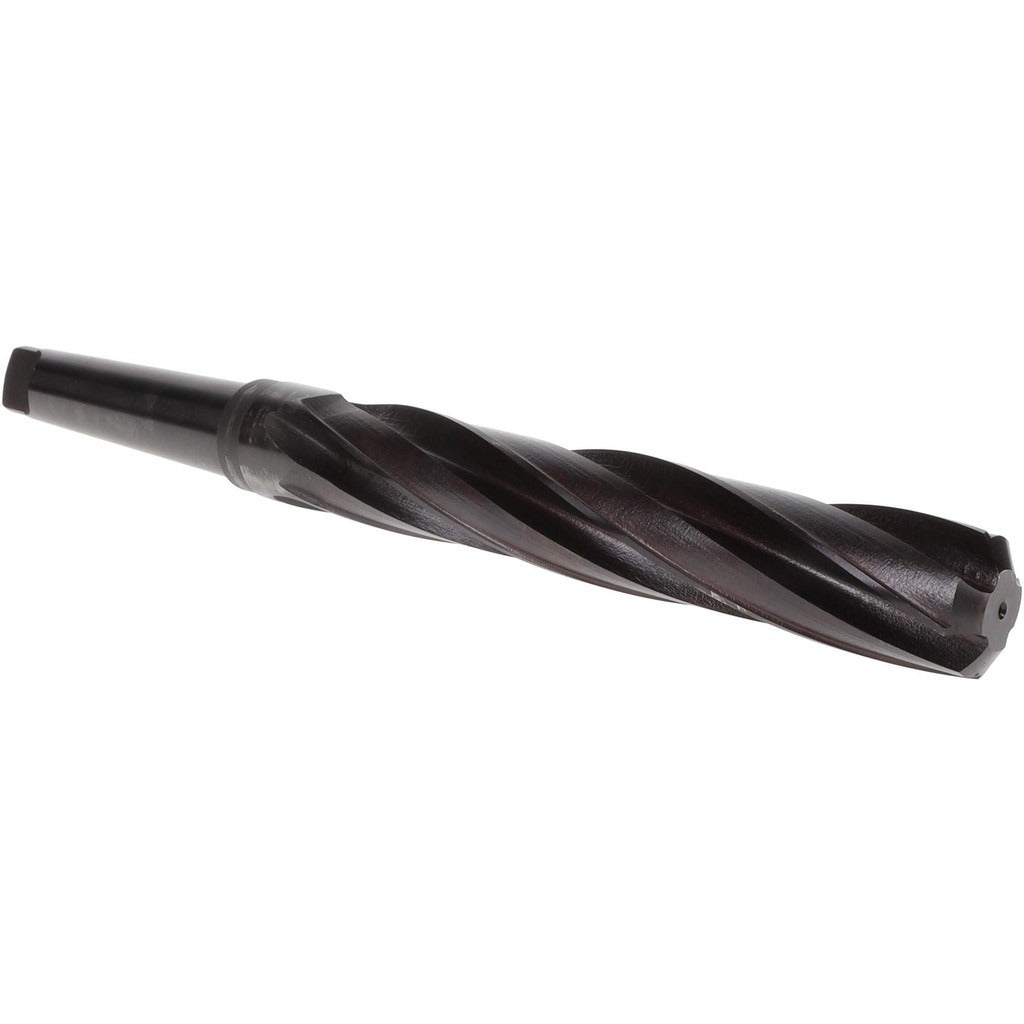

Value Collection SC0840132 Hss Morse Taper Core Drill 1-1/2 in

Product Description

The VALUE COLLECTION SC0840132 is a high-speed steel (HSS) Morse taper core drill designed for enlarging existing holes with precision and efficiency. Featuring a 1-1/2 inch cutting diameter and four flutes, this drill delivers smooth chip evacuation and consistent bore geometry in medium to heavy material removal applications. The 4MT Morse taper shank provides a secure, self-holding fit in compatible drill press spindles and lathes. An oxide coating improves surface hardness and reduces friction at the cutting edge. This tool is installed and operated by machinists, tool-and-die professionals, and maintenance technicians working in fabrication and production environments.

This core drill is suited for metalworking applications where a pre-drilled or cored hole requires finishing or enlarging to a 1-1/2 inch diameter. The 9-3/8 inch flute length accommodates deeper bore passes, and the 15 inch overall length extends reach into deep fixtures or long workpieces. The right-hand spiral and right-hand cutting direction make it compatible with standard spindle rotation. It is commonly used on drill presses, lathes, and magnetic base drills equipped with a 4MT spindle taper.

Key Features

• 1-1/2 inch (1.5000 inch decimal) cutting diameter for precise bore sizing
• Four-flute geometry promotes efficient chip removal and improved surface finish
• 4MT Morse taper shank provides a self-holding connection in compatible spindles
• High-speed steel construction handles a wide range of ferrous and non-ferrous metals
• Oxide coating reduces friction and extends tool life at the cutting zone
• 15 inch overall length with 9-3/8 inch flute length for deep-bore applications

Compatibility

Designed for use in drill presses, lathes, and similar machine tools fitted with a Number 4 Morse taper (4MT) spindle. Suitable for enlarging existing holes in ferrous and non-ferrous metals.

Installation Notes

This tool is installed and operated by machinists or qualified maintenance technicians. Before mounting, ensure the machine spindle is fully powered down and locked out per applicable OSHA lockout/tagout procedures. Clean the taper socket and shank of any chips or oil before seating to ensure full contact. Core drills require a pre-existing hole or cored opening and should not be used as a starting drill from solid material.
