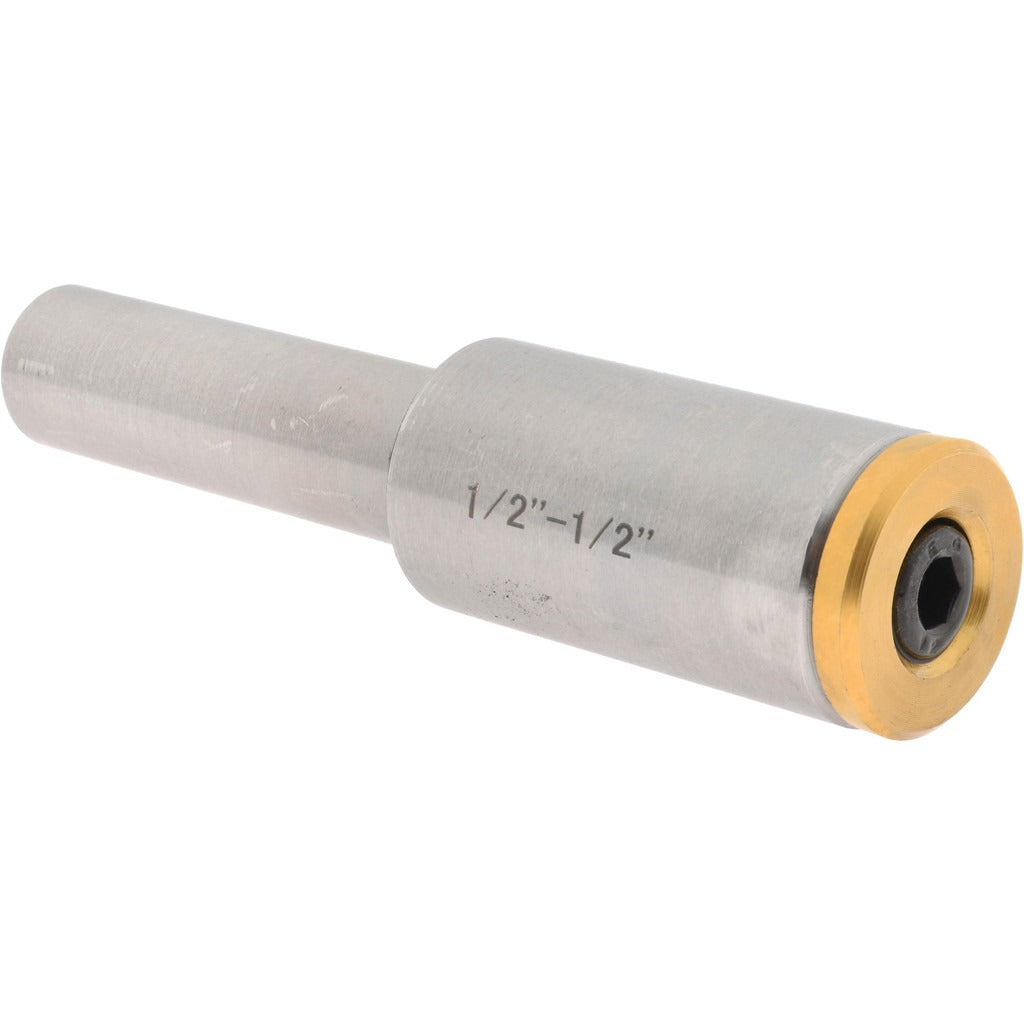

Value Collection SC08271413 Slitting Slotting Saw Arbor

Product Description

The VALUE COLLECTION SC08271413 is a straight-shank slitting and slotting saw arbor designed to mount slitting or slotting saw blades on milling machines and similar machining equipment. The arbor features a 0.5 inch shank diameter and accepts cutter hole diameters of 0.5 inch, making it compatible with a common range of saw blades used in metalworking and general machining applications. Overall length is 3.2 inches, keeping the setup compact and rigid. The head diameter measures 0.75 inch. Machinists and toolroom professionals install this arbor as a workholding interface between the machine spindle and the saw blade.

This arbor is suited for use in vertical milling machines and machining centers where slitting or slotting operations are performed on metal, plastic, or composite workpieces. Typical applications include cutting narrow slots, parting off material, and producing keyways. The straight shank design allows direct chucking in collet holders or drill chucks sized for 0.5 inch shanks, making it a straightforward setup for both production and jobshop environments.

Key Features

• Straight shank design for direct mounting in 0.5 inch collet holders or drill chucks
• 0.5 inch cutter hole diameter accepts a wide range of standard slitting and slotting saw blades
• 0.75 inch head diameter provides a secure seating surface for the blade
• Compact 3.2 inch overall length reduces overhang and improves rigidity during cutting
• Lightweight at 0.308 pounds for easy handling and minimal spindle load

Compatibility

Designed as a standard-style saw arbor for use with slitting and slotting saw blades having a 0.5 inch cutter hole diameter, mounted in machine spindles or collet systems accepting a 0.5 inch straight shank.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the machine before mounting or removing the arbor. Secure the straight shank firmly in the collet or chuck to the holding system manufacturer's recommended clamping procedure before operating. Verify that the saw blade is properly seated against the arbor head and that all fasteners are tightened before starting the spindle.
