Value Collection SC08271348 Slitting Slotting Saw Arbor

Product Description

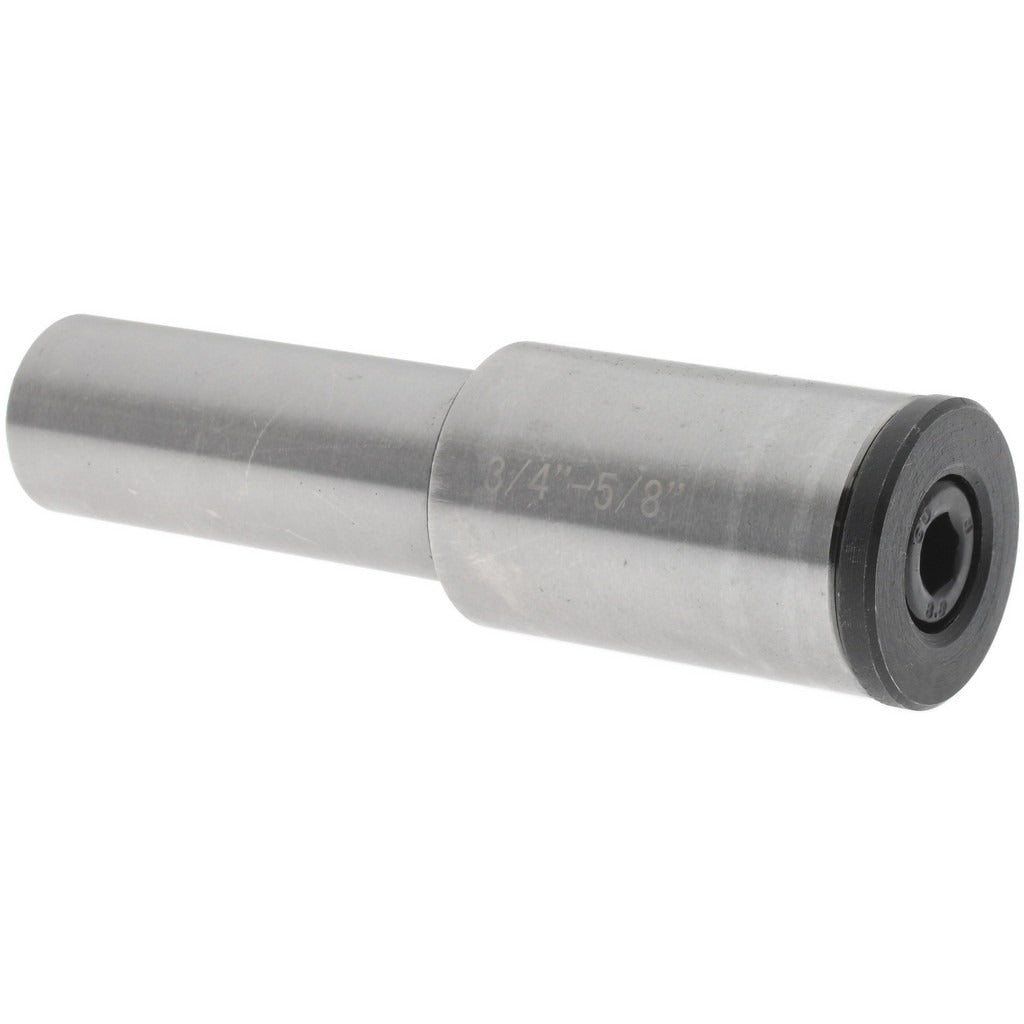

The VALUE COLLECTION SC08271348 is a straight-shank slitting and slotting saw arbor designed to mount slitting or slotting saw blades on milling machines and machining centers. The arbor accepts cutter hole diameters of 5/8 inches and features a 3/4 inch straight shank for direct chuck or collet mounting. Overall length measures 3.66 inches, making it a compact, rigid tool holder suited for precision slotting, thin-kerf slitting, and groove-cutting operations. Machinists and toolroom operators use this arbor when they need a reliable, straightforward interface between the machine spindle and the saw blade without the need for a dedicated arbor-style spindle.

This arbor is used in manual vertical mills, CNC milling machines, and machining centers where slitting or slotting operations are performed on metal, plastic, or composite workpieces. The 1 inch head diameter and 1.5 inch body length provide sufficient support for saw blades in standard shop applications. It is a common choice for tool-and-die work, maintenance machining, and general metalworking environments that require repeatable, accurate saw blade positioning.

Key Features

• Straight shank design for direct chuck or collet mounting with no adapter required
• 3/4 inch shank diameter fits standard collets and chucks found on most milling machines
• Accepts 5/8 inch cutter hole diameter slitting and slotting saw blades
• 1 inch head diameter provides solid blade support and minimizes runout
• 1.5 inch body length accommodates a range of standard blade widths
• Compact 3.66 inch overall length reduces overhang and improves rigidity

Compatibility

Designed as a standard straight-shank slitting and slotting saw arbor compatible with milling machines and machining centers that accept a 3/4 inch straight shank, for use with saw blades having a 5/8 inch cutter hole diameter.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully powered down and locked before mounting or removing the arbor. Seat the straight shank fully and evenly in the collet or chuck, and verify blade seating and fastener tightness before engaging the spindle. Inspect the arbor and blade interface for debris or damage before each use to prevent runout and blade damage.
