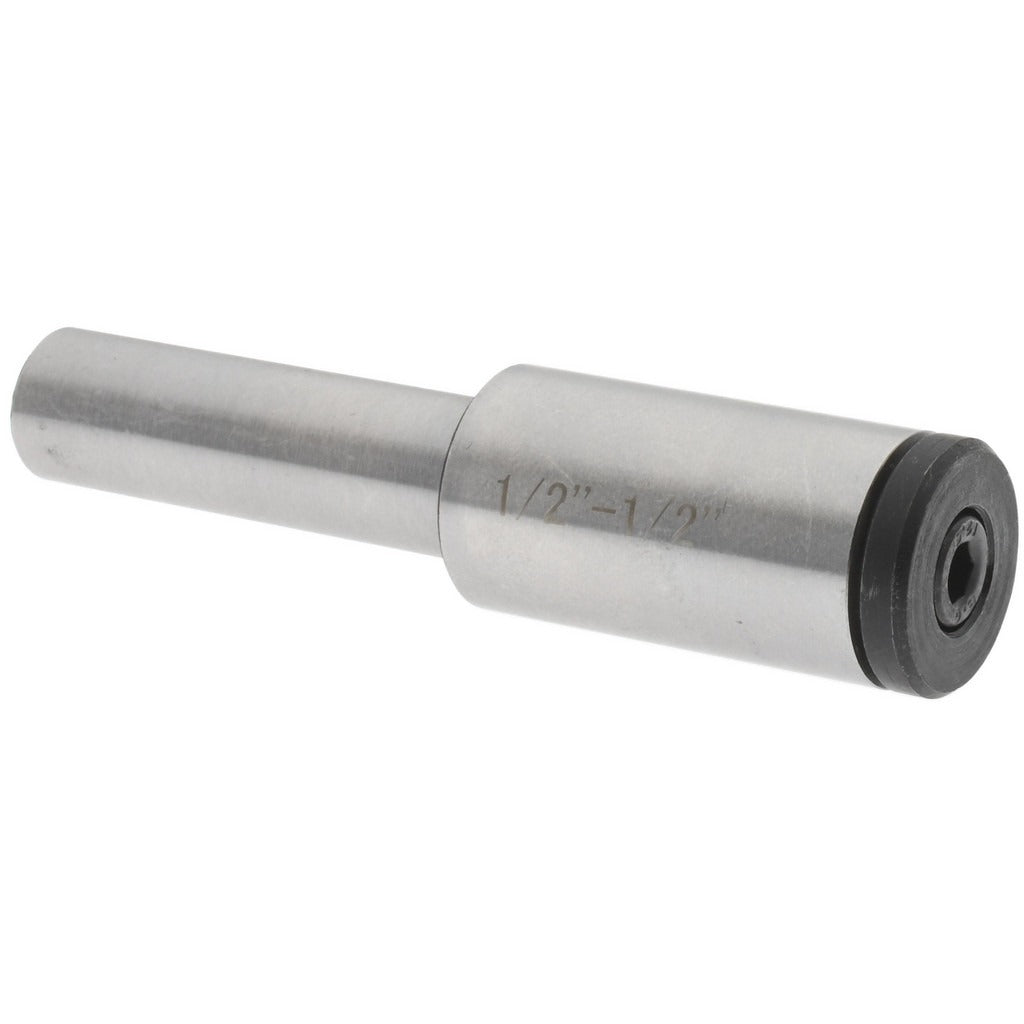

Value Collection SC08271330 Slitting Slotting Saw Arbor

Product Description

The VALUE COLLECTION SC08271330 is a straight-shank slitting and slotting saw arbor designed to mount slitting or slotting saw blades in milling and machining operations. The arbor accepts blades with a 0.5 inch cutter hole diameter and features a 0.5 inch straight shank for use in compatible tool holders or drill chucks. Overall length is 3.2 inches, and the head diameter measures 0.75 inches. Machinists and toolroom technicians use this arbor for precise cutoff, slotting, and groove-milling work on metalworking lathes and milling machines. The body length of 1.37 inches provides adequate projection for standard blade seating.

This saw arbor is suited for light to medium-duty slitting and slotting operations in machine shops, tool rooms, and production environments. It accommodates standard 0.5 inch bore slitting or slotting saw blades and is installed in milling machines or drill press setups where controlled groove cutting or part separation is required. The straight shank design ensures straightforward mounting in collet chucks or tool holders sized for 0.5 inch shanks.

Key Features

• Straight shank design for secure seating in 0.5 inch collet chucks or tool holders
• Accepts slitting and slotting saw blades with 0.5 inch cutter hole diameter
• 3.2 inch overall length provides clearance for standard milling setups
• 0.75 inch head diameter supports stable blade retention
• 1.37 inch body length for consistent blade positioning and seating
• Compact package weight of 0.308 pounds for easy handling and storage

Compatibility

Designed as a standard replacement or add-on arbor for milling machines and drill presses that accept 0.5 inch straight-shank tooling and require mounting of 0.5 inch bore slitting or slotting saw blades.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and fully de-energize the machine before mounting or removing the arbor from any tool holder or spindle. Ensure the collet or chuck is rated for the 0.5 inch shank diameter before tightening. Inspect the arbor and blade bore for burrs or contamination prior to assembly to ensure concentric seating and safe operation.
