Value Collection SC05879804 Type Z Tool Holder Bushing

Product Description

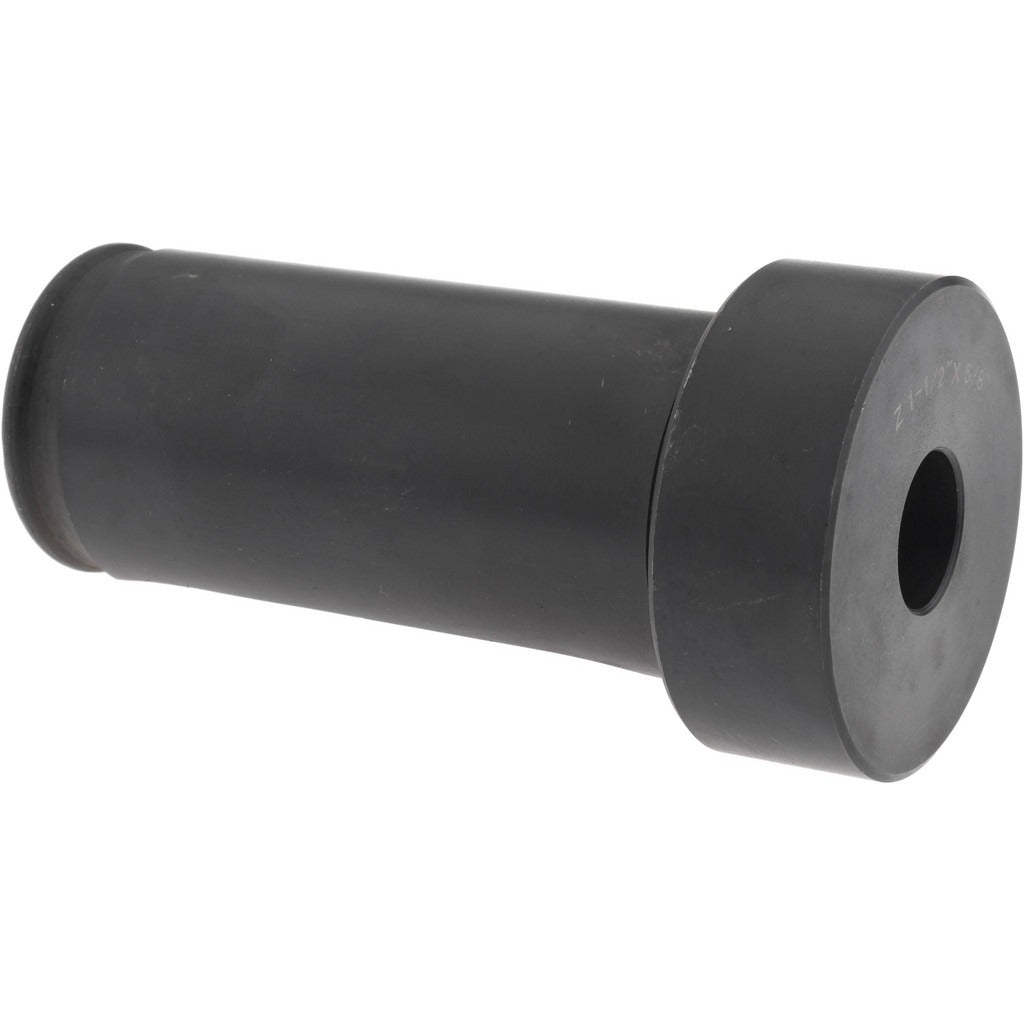

The VALUE COLLECTION SC05879804 is a Type Z rotary tool holder bushing designed for use in drill presses, milling machines, and CNC machining centers that require precise tool positioning and support. This bushing features a 0.625-inch (5/8 inch) inside diameter and a 1.5-inch (1-1/2 inch) outside diameter, making it a standard-size component for tooling setups that demand accurate bore alignment. The length under the head measures 3.25 inches (3-1/4 inch), with a slot length of 2.875 inches (2-7/8 inch) and a head thickness of 0.75 inches (3/4 inch). Machinists and toolroom technicians install this bushing as part of jig and fixture assemblies or tooling plate configurations.

This Type Z bushing is suited for production machining environments, job shops, and maintenance operations where consistent tool guidance is required. The Type Z designation indicates a slip-fixed or similar drive style used in tooling systems that require positive location without press-fit installation. It is typically installed in drill jigs and fixture plates for repetitive-hole drilling or reaming operations across light to medium-duty machining applications.

Key Features

• Type Z bushing style for tool guidance and positive location in jig and fixture setups
• 0.625-inch inside diameter for standard tooling shank compatibility
• 1.5-inch outside diameter for secure seating in standard-size liner bushings or jig plates
• 3.25-inch length under head provides extended tool support for deeper workpieces
• 2.875-inch slot length accommodates drive or locking hardware in Type Z configurations
• 0.75-inch head thickness for stable seating against fixture plate surfaces

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type Z rotary tool holder bushing applications in standard drill jig and fixture plate assemblies.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Power down and lock out all machine movement before inserting or removing bushings from a jig plate. Ensure the mating liner bushing or plate bore is clean and free of burrs before seating the bushing. Verify drive slot alignment with any locking hardware before securing the assembly.
