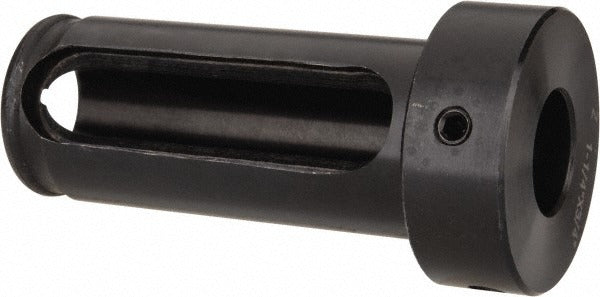

Value Collection SC05879754 Type Z Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05879754 is a Type Z rotary tool holder bushing used in machining and toolholding applications. It features a 0.750 inch inside diameter and a 1.250 inch outside diameter, with a length under head of 3.000 inches and a head thickness of 0.625 inches. The slot length measures 2-5/8 inches, providing the clearance needed for standard Type Z toolholder configurations. This bushing is installed by machinists and toolroom technicians working with rotary tooling setups on mills, drill presses, and similar machine tool equipment. It weighs 1.65 pounds and is sold as a single piece.

This Type Z bushing is suited for use in machine shop environments where precision toolholding is required. It fits into standard toolholder bodies that accept the Type Z bushing geometry. Typical applications include production machining, toolroom work, and fixturing setups where consistent tool positioning and repeatable runout are critical. Licensed machinists and tool and die tradespeople are the primary installers in both job shop and production environments.

Key Features

• Type Z bushing geometry for compatibility with standard Type Z toolholder systems
• 0.750 inch inside diameter and 1.250 inch outside diameter for precise tool seating
• 3.000 inch length under head with a 2-5/8 inch slot length
• 0.625 inch head thickness for stable seating against toolholder face
• Single-piece unit sold individually, no minimum order above one piece

Compatibility

Designed as an OEM-style replacement or new-installation bushing for Type Z rotary toolholder bodies requiring a 3/4 inch inside diameter and 1-1/4 inch outside diameter bushing.

Installation Notes

Installation is performed by machinists or tool and die tradespeople. Power down and lock out the machine tool completely before removing or installing any toolholder bushing. Inspect the bore and mating surfaces for burrs or contamination before seating the bushing. Do not force the bushing into a bore that has not been properly cleaned and measured for correct clearance fit.
