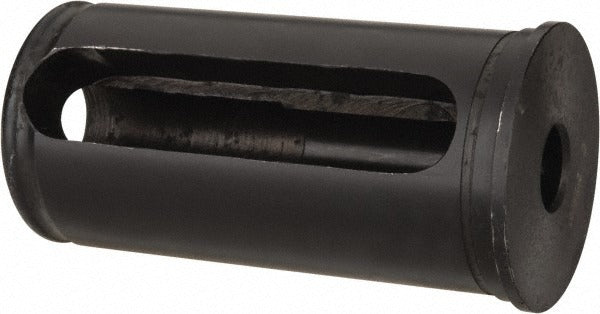

Value Collection SC05879606 Type C Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05879606 is a Type C rotary tool holder bushing designed for use in machine tool setups where precise boring bar or tooling alignment is required. With a 0.625 inch inside diameter and a 2 inch outside diameter, this bushing provides a stable interface between the tool holder and the workpiece or fixture. The head thickness measures 0.303 inches, and the overall length under the head is 4 inches, with a slot length of 3.625 inches. At 2.046 pounds, this is a solid, heavy-duty component suited for shop and production environments. Machinists and toolroom technicians are the primary installers.

This Type C bushing is used in rotary tool holder applications on lathes, milling machines, boring mills, and similar machine tool setups. It fits into tool holder assemblies that require a flanged bushing with a slotted shank for positive drive engagement. The bushing is appropriate for both production floor and job shop environments where consistent tool positioning is critical to part accuracy and repeatability.

Key Features

• Type C configuration with slotted shank for positive drive in compatible tool holders
• 0.625 inch inside diameter for secure tool shank engagement
• 2 inch outside diameter for stable seating in the holder bore
• 4 inch length under head accommodates deeper tool holder setups
• 3.625 inch slot length provides extended positive drive engagement
• Head thickness of 0.303 inches supports consistent axial positioning

Compatibility

Designed as a standard Type C rotary tool holder bushing for machine tool applications requiring a 5/8 inch bore, 2 inch OD flanged bushing with slotted shank engagement.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine before inserting or removing any tool holder bushing. Ensure the bore and bushing surfaces are clean and free of chips or burrs before seating the bushing to avoid misalignment or damage to the holder. Do not force the bushing into the holder bore; confirm dimensional compatibility before installation.
