Value Collection SC05879440 Type C Tool Holder Bushing

Product Description

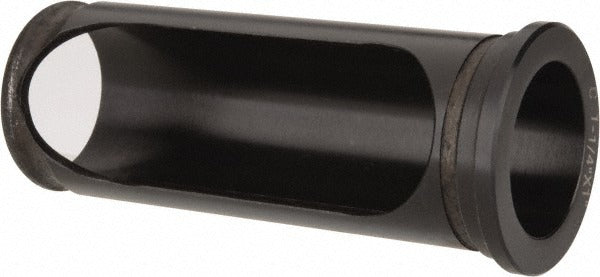

The VALUE COLLECTION SC05879440 is a Type C rotary tool holder bushing designed for use in tooling setups that require precise bore and outer diameter sizing. With a 1 inch inside diameter and a 1.25 inch outside diameter, this bushing locates and supports rotating cutting tools within a tool holder or drill jig. The head thickness measures 0.265 inches, providing a positive seating surface. A 2.875 inch slot length allows for proper engagement and clearance in compatible tooling systems. At 1.496 pounds, this is a solid, production-grade component intended for installation by machinists and toolroom technicians.

This Type C bushing is suited for use in machine shop environments where drill jig bushings or tool holder liners are required. It is appropriate for light to medium production drilling, reaming, and boring operations. The bushing fits into standard tooling plates or jig bodies where a 1.25 inch outer diameter bore has been prepared. It is a single-piece component supplied individually and is well matched to applications requiring consistent tool guidance and repeatable hole location.

Key Features

• Type C bushing design with a flanged head for positive axial location
• 1 inch inside diameter (1.0000 inches decimal) for standard tool shank fitment
• 1.25 inch outside diameter for press or slip fit into standard tooling bores
• 3.25 inch length under head provides extended tool support and guidance depth
• 2.875 inch slot length for engagement and clearance compatibility
• Head thickness of 0.265 inches for reliable seating against the jig plate surface

Compatibility

Designed as a standard Type C rotary tool holder bushing for use in drill jig tooling setups requiring a 1 inch inside diameter and 1.25 inch outside diameter bushing.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. The receiving bore in the jig plate or tool holder body should be verified to the correct diameter and surface finish before pressing or fitting the bushing into place. Power down and de-energize any associated machine before servicing tooling components. Consult applicable shop standards and engineering drawings for fit tolerances and seating requirements.
