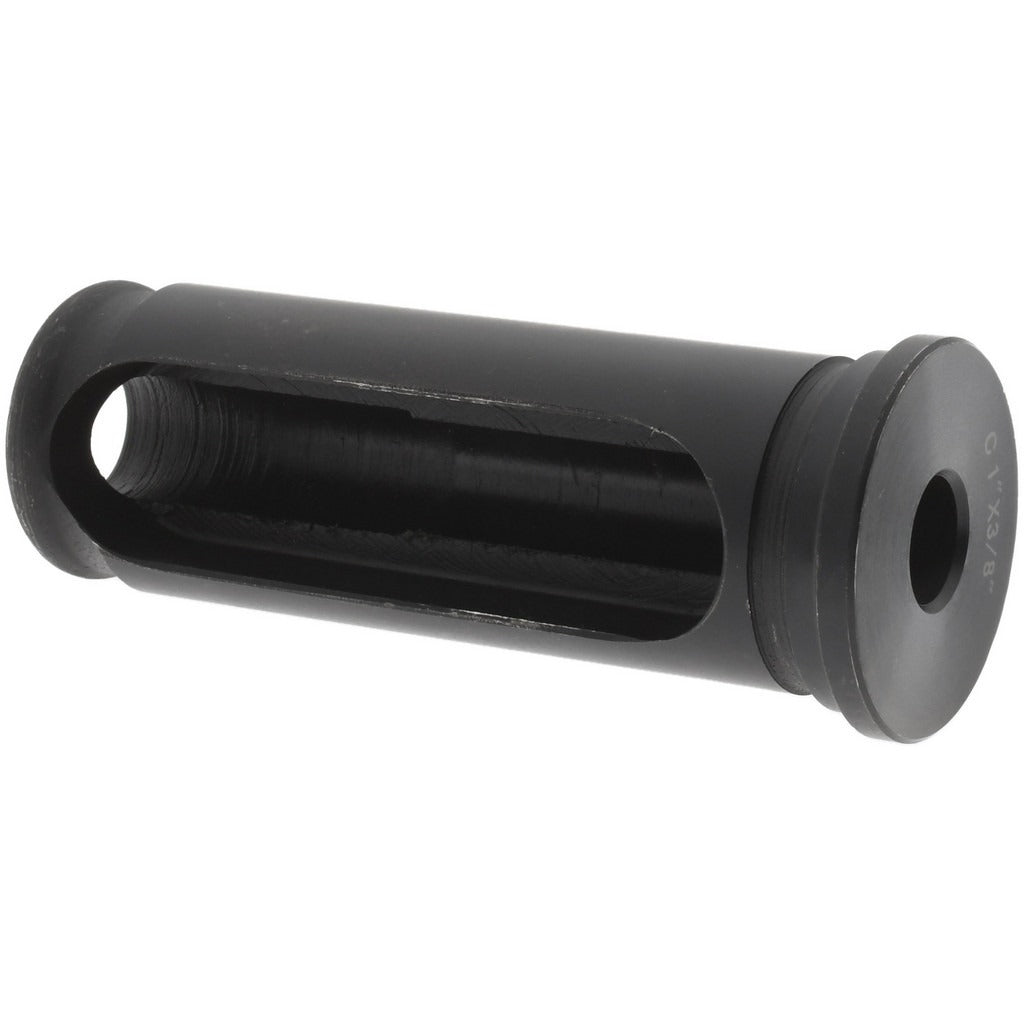

Value Collection SC05879358 Type C Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05879358 is a Type C rotary tool holder bushing designed for use in drill press and milling machine tooling setups. It features a 0.375 inch inside diameter and a 1.0000 inch outside diameter, with a length under head of 2.750 inches and a head thickness of 0.265 inches. The slot length measures 2.375 inches. This bushing provides precise bore alignment for rotating tooling, holding drill bits, reamers, or other round-shank tools securely within a tool holder or bushing plate. Installation is handled by machinists and tool room technicians as part of standard tooling configuration.

This Type C bushing is suited for applications in production machining, toolroom work, and maintenance environments where consistent tool alignment is required. It is appropriate for use in drill jigs, bushing plates, and tool holder assemblies that accept a 1 inch outside diameter press-fit or slip-fit bushing with a headed flange. The 2.375 inch slot length accommodates setscrew locking configurations typical of Type C bushing designs.

Key Features

• Type C bushing design with slotted body for setscrew retention
• 0.375 inch (3/8 inch) inside diameter for standard round-shank tooling
• 1.0000 inch outside diameter for consistent fit in mating bushing plates or holders
• 2.750 inch length under head provides extended tool support and alignment depth
• Head thickness of 0.265 inches (approximately 3/16 inch) for flange seating
• Slot length of 2.375 inches compatible with standard setscrew locking arrangements

Compatibility

Designed as a replacement or spare Type C rotary tool holder bushing for drill jig and tool holder assemblies accepting a 1 inch outside diameter headed bushing with a 3/8 inch bore.

Installation Notes

Installation is typically performed by a machinist or tool room technician. Ensure all machine power is off and the spindle is fully stopped before inserting or removing tooling bushings. Press-fit or slip-fit installation should be performed with appropriate arbor press equipment to avoid bushing damage. Verify setscrew alignment with the bushing slot before securing the locking fastener.
