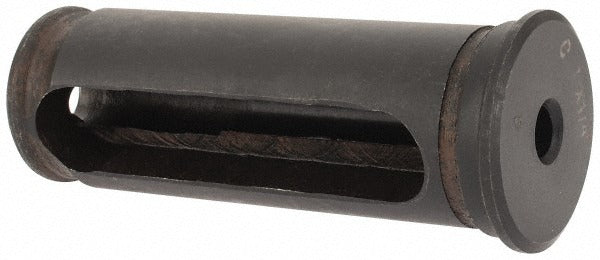

Value Collection SC05879333 Tool Holder Bushing Type C

Product Description

The VALUE COLLECTION SC05879333 is a Type C rotary tool holder bushing designed for use in drill presses, milling machines, and similar rotary tooling setups. With a 0.25 inch inside diameter and a 1 inch outside diameter, this bushing guides and supports cutting tools with close-tolerance alignment. The head thickness measures 0.265 inches, and the body extends 2.75 inches under the head. Machinists and toolroom technicians install this bushing into jig plates and fixture bodies to maintain consistent tool positioning across repeated operations.

This Type C bushing is suited for production and maintenance machining environments where accurate drill or reamer guidance is required. The 2.375 inch slot length allows for tool changes without fully removing the bushing from the fixture, making it practical for setups that require frequent tooling swaps. It fits standard jig bushing applications in both job shop and manufacturing floor settings.

Key Features

• Type C rotary jig bushing for guided tooling applications
• 0.25 inch inside diameter for standard drill or reamer guidance
• 1 inch outside diameter for secure press-fit or slip-fit into fixture plates
• 2.75 inch length under head accommodates deeper workpiece setups
• 2.375 inch slot length supports fast tool changes without bushing removal
• Head thickness of 0.265 inches provides a positive seating surface on the jig plate

Compatibility

Designed as a standard Type C rotary tool holder bushing for use in jig and fixture assemblies that accept 1 inch outside diameter drill bushings.

Installation Notes

Installation is typically performed by machinists or toolroom technicians. Ensure the mating bushing hole in the jig plate is machined to the correct tolerance before installing. Power down all equipment and secure the workpiece fixture before seating or removing the bushing. Do not force the bushing into an undersized bore, as this can damage the bushing or distort the jig plate.
