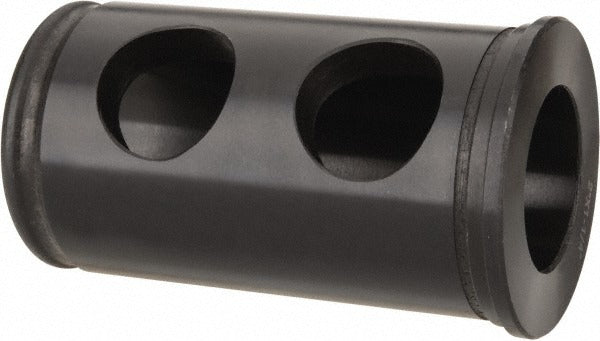

Value Collection SC05879267 Tool Holder Bushing Type J

Product Description

The VALUE COLLECTION SC05879267 is a Type J rotary tool holder bushing designed for use in drill jig and tooling setups requiring precise bore alignment and secure tool positioning. With a 1.25-inch inside diameter and a 2.0000-inch outside diameter, this bushing provides a close-tolerance interface between the cutting tool and the jig body. The 3.5000-inch length under head and 0.2950-inch head thickness give it the reach and seating surface needed for deeper workpiece applications. At 2.178 pounds, it is a solid, production-grade component suited for use by machinists, tool and die makers, and precision fabricators working in high-volume or jig-guided machining environments.

This bushing is suited for drill jig applications in both job-shop and production machining environments. It is typically installed in renewable or press-fit bushing liners used to guide drills, reamers, and other rotary cutting tools. The 1-1/2-inch distance between hole centers spec makes it applicable in multi-spindle or closely spaced hole-pattern jig plates. It is a direct replacement or supplement within standard Type J bushing systems where headless or headed guidance is required across varying workpiece depths.

Key Features

• Type J headed bushing configuration for positive seating against jig plate surface
• 1.2500-inch inside diameter for precise tool or liner bore alignment
• 2.0000-inch outside diameter for standard press or slip-fit installation
• 3.5000-inch length under head accommodates deeper jig plate or workpiece stacks
• 0.2950-inch head thickness provides a stable flange seating surface
• 1-1/2-inch distance between hole centers supports multi-hole jig plate layouts

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard Type J rotary tool holder bushing applications in drill jig and precision tooling systems.
