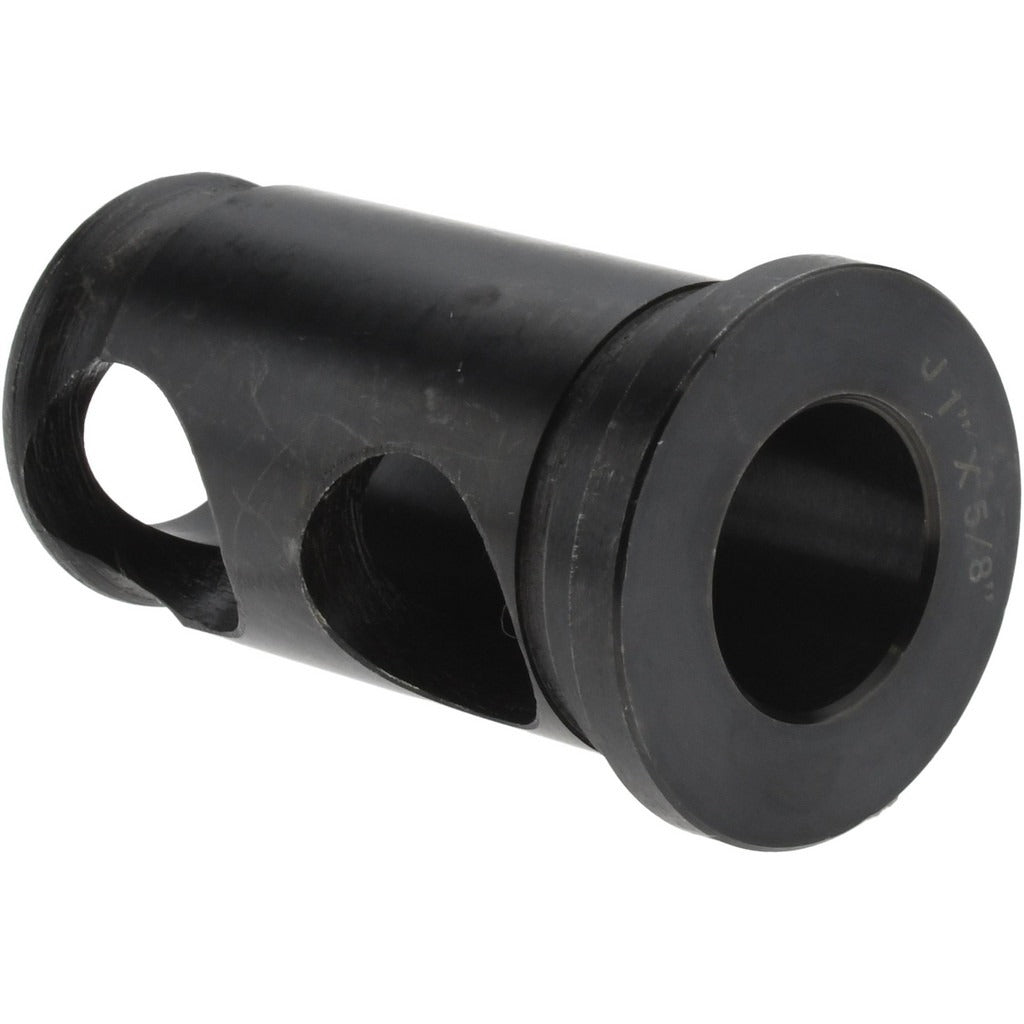

Value Collection SC05878996 Type J Tool Holder Bushing

Product Description

The VALUE COLLECTION SC05878996 is a Type J rotary tool holder bushing designed for use in drill jigs and precision tooling setups. With an inside diameter of 0.6250 inches and an outside diameter of 1.0000 inches, this bushing provides accurate bore guidance for cutting tools, reamers, and drill bits. The length under head measures 1.7500 inches, and the head thickness is 0.2650 inches. Machining professionals and tool-room technicians install this bushing into jig plates to maintain positional accuracy and reduce tool wander during repetitive drilling and reaming operations.

Type J tool holder bushings are commonly used in production machining environments where jig-based drilling fixtures require a headless or headed liner bushing with precise dimensional tolerances. This bushing fits standard jig plate bores and is suited for use on manual drill presses, CNC machining centers, and dedicated drill jig fixtures found in manufacturing and fabrication shops. The 7/8-inch distance between hole centers and 7/16-inch D-in measurement support standard fixture layouts.

Key Features

• Type J bushing configuration for use in rotating tool holder applications
• Inside diameter of 0.6250 inches for consistent tool guidance
• Outside diameter of 1.0000 inches for standard jig plate fitment
• Length under head of 1.7500 inches for adequate bore engagement
• Head thickness of 0.2650 inches provides a positive seating surface
• Distance between hole centers of 7/8 inches supports standard fixture patterns

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type J rotary tool holder bushing applications in standard drill jig fixtures and tooling plates.

Installation Notes

Tool holder bushings of this type are typically installed and serviced by machining professionals and tool-room technicians. Before installation, ensure the jig plate bore is clean, free of burrs, and dimensionally within tolerance to accept the bushing without excessive force or clearance. Press-fitting equipment or an arbor press may be required depending on the interference fit of the application. Follow applicable shop standards and fixture design guidelines when integrating this bushing into a jig assembly.
