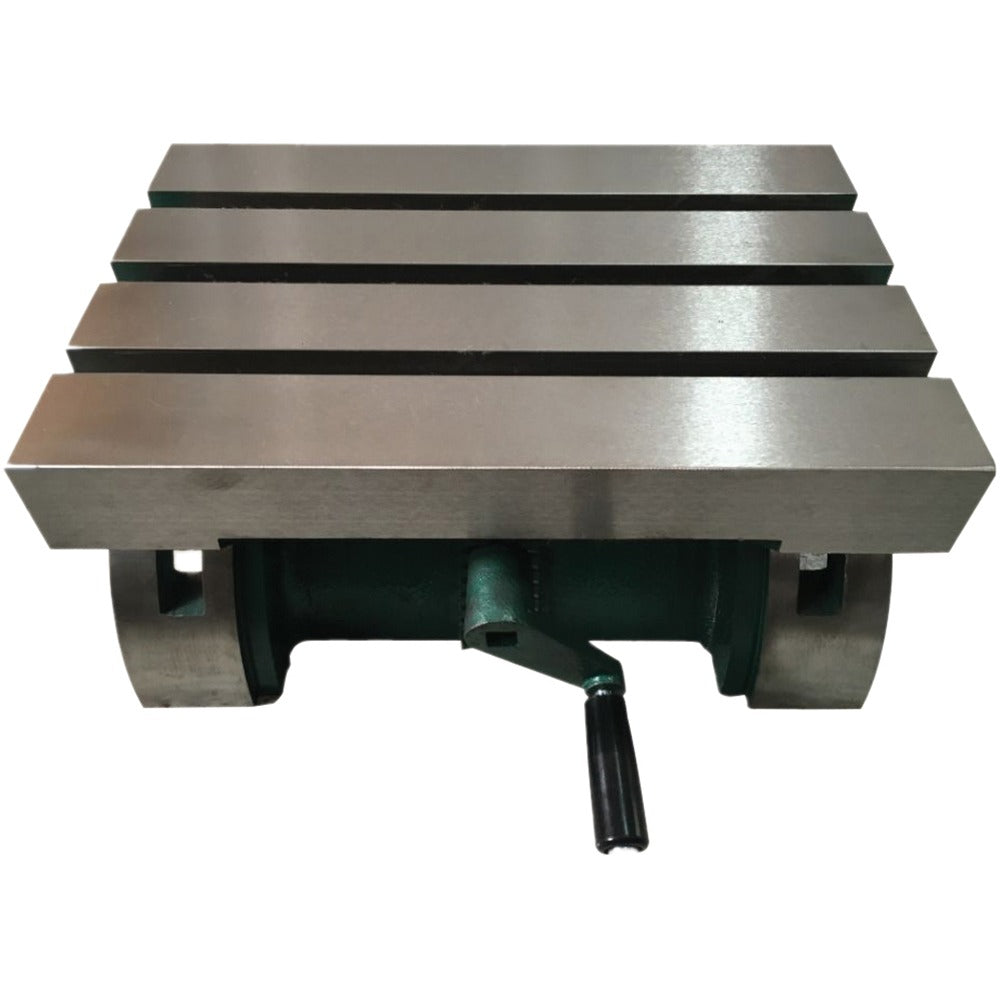

Value Collection SC00675355 Tilting Table 10x7x5 in

Product Description

The VALUE COLLECTION SC00675355 is a tilting machine table designed for use with drill presses, milling machines, and similar metalworking equipment. The table swivels to allow angled workholding, giving machinists and toolroom technicians the ability to position workpieces at compound angles without relocating the part. It measures 10 inches in length, 7 inches in width, and 5 inches in height overall. The maximum load capacity is 66 pounds. The slot width measures 31/64 inches, compatible with standard T-slot clamping hardware. This is a general-purpose accessory installed by machinists, toolmakers, and maintenance mechanics working in production or job-shop environments.

This tilting table is suited for light to medium-duty metalworking setups where angular drilling, milling, or grinding operations are required. The swivel function allows repositioning without removing the workpiece, improving setup efficiency on repetitive angled operations. It is appropriate for use in machine shops, maintenance facilities, and vocational training environments. The compact footprint fits standard bench-top and floor-standing drill press tables as well as small milling machine tables.

Key Features

• Swiveling table allows angled workholding for compound setups
• 31/64 inch slot width accepts standard T-slot clamps and hold-down hardware
• 66 pound maximum load capacity for light to medium-duty applications
• Compact 10 x 7 x 5 inch envelope fits bench-top and floor-standing machines
• Rigid table construction supports consistent repeatability across multiple setups

Compatibility

Designed as a general-purpose tilting table accessory for use with drill presses, small milling machines, and similar metalworking equipment that accept auxiliary worktables with standard T-slot clamping systems.

Installation Notes

Installation is typically performed by a machinist or maintenance mechanic. Power down and lock out the machine before mounting or adjusting the table. Verify that the host machine table surface and mounting slots are clean and free of chips or burrs before seating the tilting table. Confirm that all clamping hardware is fully tightened before applying any load or beginning a machining operation.
