Value Collection SC00456129 Saw Arbor Straight Shank

Product Description

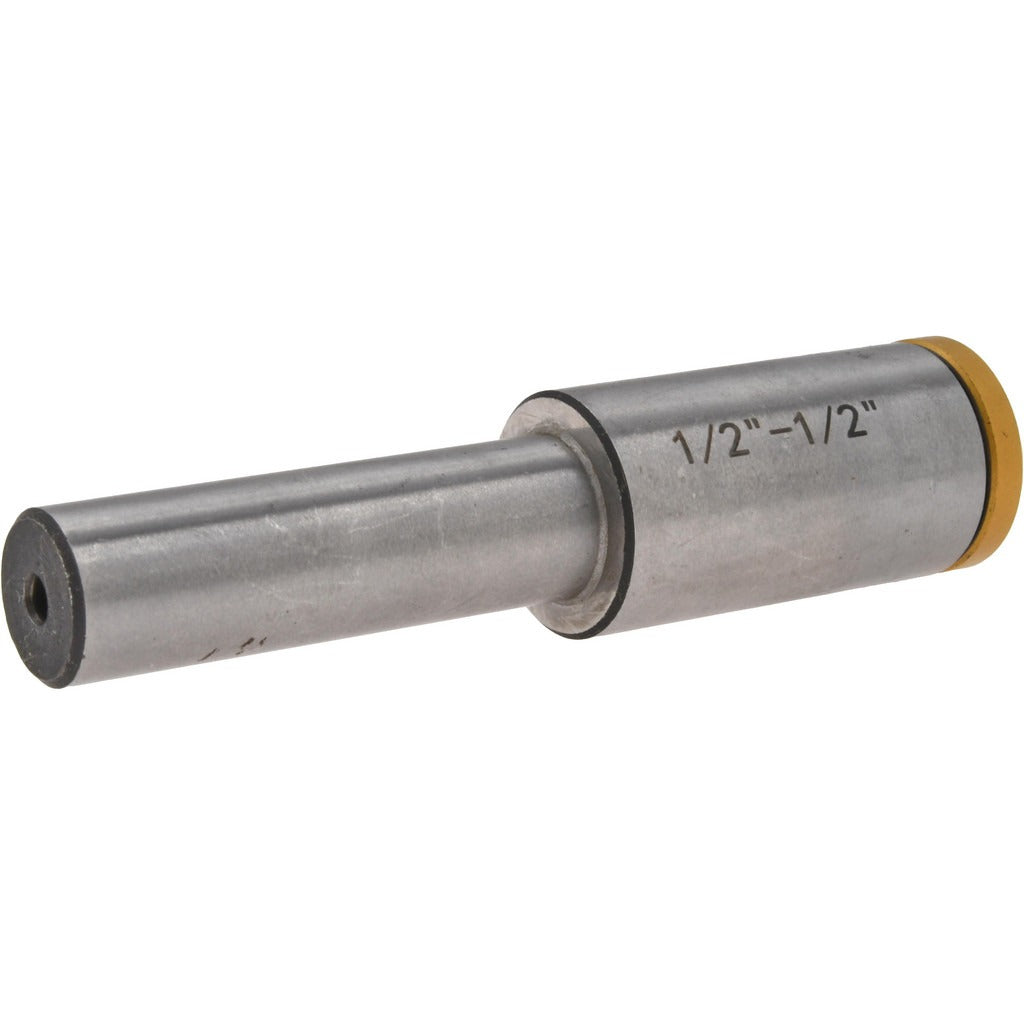

The VALUE COLLECTION SC00456129 is a straight-shank slitting and slotting saw arbor designed to hold slitting or slotting saw blades in milling and machining operations. With a 0.5-inch shank diameter and a 0.75-inch head diameter sized to accept cutters with a 0.5-inch hole diameter, this arbor provides a secure, concentric mount for thin saw blades used in slot cutting, parting, and undercutting applications. Overall length is 3.2 inches (81.28 mm). Weighing 0.25 pounds, it is suited for use in manual or CNC milling machines. Machinists and tool-and-die professionals are the primary users of this type of tooling.

This arbor is appropriate for general metalworking and machining environments where slitting or slotting saws must be mounted on a straight-shank spindle. Typical applications include cutting narrow slots, parting stock, and producing keyways or grooves in ferrous and non-ferrous metals. The straight shank allows direct mounting in collet chucks or end mill holders with the correct bore size. Both job shop and production machining environments commonly use this type of arbor for light to moderate milling work.

Key Features

• Straight shank design for use in collet chucks or end mill holders with 1/2-inch bore
• Accepts slitting and slotting saw blades with 1/2-inch cutter hole diameter
• 3/4-inch head diameter provides a stable seating surface for the cutter
• 3.2-inch overall length (81.28 mm) accommodates standard milling machine clearances
• Lightweight at 0.25 pounds for easy handling and quick tool changes

Compatibility

Designed as a direct-mount arbor for slitting and slotting saw blades with a 1/2-inch cutter hole diameter, for use in milling machines equipped with collet chucks or end mill holders accepting a 1/2-inch straight shank.

Installation Notes

Installation is performed by machinists using standard milling machine tooling procedures. Ensure the spindle is fully stopped and the machine is powered down before mounting or removing the arbor. Secure the arbor firmly in the collet or holder to the torque specification appropriate for your machine tool. Confirm cutter seating and arbor runout with a dial indicator before beginning a cut.
