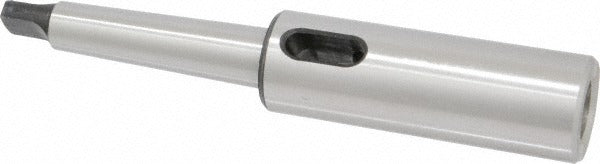

Value Collection SC00187229 MT2 Morse Taper Extension Adapter

Product Description

The VALUE COLLECTION SC00187229 is a Morse Taper to Morse Taper extension adapter used to extend the reach of MT2 tooling in drill presses, lathes, and milling machines. It accepts an MT2 inside taper and presents an MT2 outside taper, allowing a technician or machinist to add length between the spindle and the cutting tool without changing taper size. The adapter measures 6-7/8 inches overall length and is constructed from medium carbon steel that has been hardened and ground throughout for dimensional accuracy and long service life. This type of adapter is a standard accessory in machine shops and production environments.

This adapter is suited for use in any machine tool application where an MT2 spindle requires additional reach to accommodate longer tooling or workpiece geometry. Common install scenarios include drill press quills, lathe tailstocks, and vertical mill spindles running MT2 tooling. The hardened and ground finish ensures consistent taper seating and reliable tool runout performance across repeated use cycles.

Key Features

• MT2 inside taper accepts standard MT2 shank tooling
• MT2 outside taper fits MT2 spindle receivers directly
• 6-7/8 inch overall length extends tool reach without taper conversion
• Medium carbon steel construction for rigidity and durability
• Hardened and ground throughout for precise taper fit and minimal runout

Compatibility

Designed as an OEM-style replacement and standard fitment adapter for machine tool spindles with MT2 taper receivers, including drill presses, lathes, and milling machines configured for MT2 tooling.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and lock out the machine before seating or removing any taper adapter. Clean both the spindle bore and the adapter taper surfaces thoroughly before insertion to ensure full seating contact and prevent fretting. Use a proper drift and soft-faced hammer to remove the adapter from the spindle after use.
