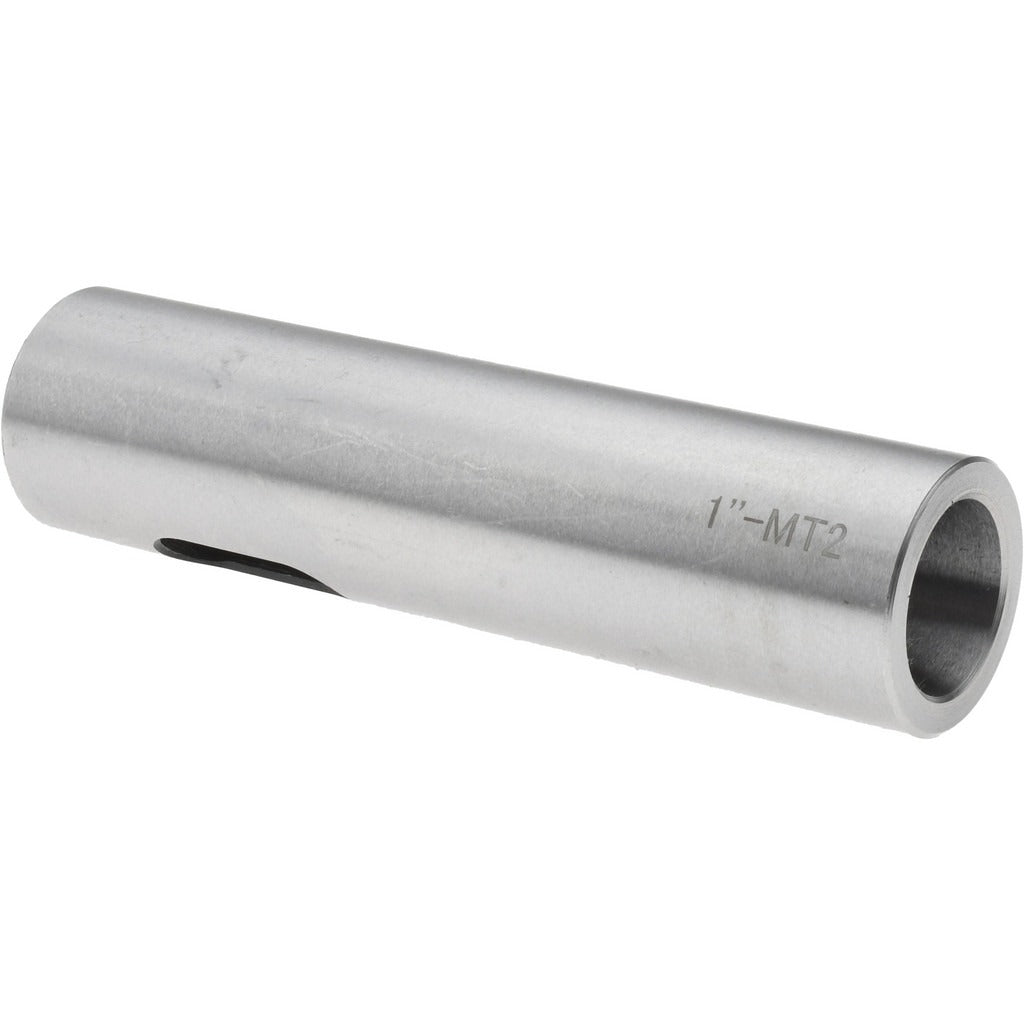

Value Collection SC00185041 MT2 Morse Taper Adapter

Product Description

The VALUE COLLECTION SC00185041 is an MT2 inside Morse taper adapter that converts a standard Morse taper spindle to a straight shank output. Machined from medium carbon steel and hardened and ground throughout, this adapter provides a rigid, precise connection between machine spindles and straight-shank tooling. With an overall length of 4 inches, it is sized for common bench-top and floor-standing drilling and milling setups. Machinists and tool-room technicians install this adapter when a machine spindle carries an MT2 taper bore and the cutting tool or chuck requires a straight shank seat.

This adapter is suited for use in machine shops, maintenance facilities, and production environments where MT2-taper spindles are standard equipment. Typical applications include drill presses, milling machines, and lathes equipped with MT2 bores. The straight shank output accepts toolholders, drill chucks, and arbors designed for straight-shank mounting. It is appropriate for both light-production and maintenance-repair operations where repeatable tool seating is required.

Key Features

• MT2 inside Morse taper matches standard MT2 spindle bores for a secure, self-holding fit
• Straight shank output accommodates a wide range of straight-shank toolholders and chuck arbors
• Hardened and ground throughout for dimensional accuracy and extended service life
• Medium carbon steel construction provides toughness under interrupted cuts and repeated tool changes
• 4-inch overall length suits standard spindle depths on common drill press and milling machine configurations

Compatibility

Designed as an OEM-style replacement adapter for machine spindles with an MT2 inside Morse taper bore requiring a straight shank tool interface.

Installation Notes

Installation is performed by qualified machinists or tool-room technicians. Power down and lock out the machine before seating or removing any taper adapter. Clean the spindle bore and the adapter taper thoroughly before installation to ensure full contact and prevent fretting. Use a proper drift and mallet at the spindle drift slot to remove the adapter — never apply side force to the shank.
