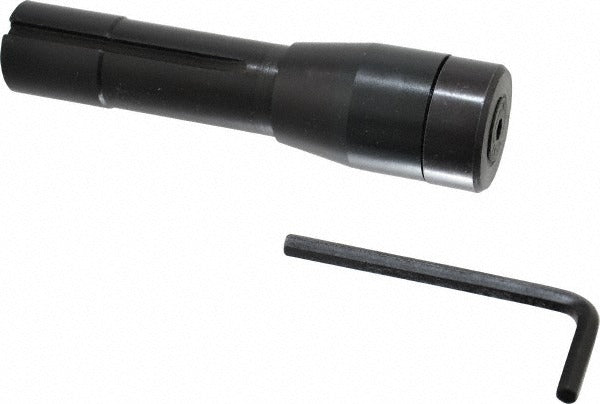

Value Collection SA/R8 Slitting Slotting Saw Arbor R8

Product Description

The VALUE COLLECTION SA/R8 is a slitting and slotting saw arbor designed for use in milling operations on R8-taper spindle machines. It features a taper shank with an overall length of 5 inches and an arbor diameter of 1.259 inches (32.0 millimeters). The shank diameter measures 0.945 inches (24.0 millimeters). This arbor accepts cutter hole diameters of 1/2, 5/8, 3/4, 7/8, and 1 inch, making it compatible with a wide range of slitting and slotting saw blades. The projection from the spindle nose to the arbor face is 53.3 millimeters. An Allen key is included. Machinists and toolroom technicians install this arbor in manual or CNC knee mills and vertical machining centers equipped with R8 spindles.

This arbor is suited for slitting, slotting, and parting operations in metalworking, fabrication, and toolroom environments. It fits standard R8 collet-style spindles commonly found on Bridgeport-style knee mills and similar vertical milling machines. The multiple cutter hole diameter options allow one arbor to be used across a variety of saw blade bores, reducing the need for multiple dedicated arbors on the shop floor.

Key Features

• R8 taper shank for direct mounting in R8-spindle milling machines
• Accepts cutter hole diameters of 1/2, 5/8, 3/4, 7/8, and 1 inch
• Overall length of 5 inches with a 53.3-millimeter projection
• Arbor diameter of 1.259 inches (32.0 millimeters)
• Includes Allen key for blade clamping
• Weighs 2 pounds

Compatibility

Designed as an OEM-style replacement or standard-fit arbor for vertical milling machines equipped with R8 taper spindles accepting slitting and slotting saw blades with 1/2-, 5/8-, 3/4-, 7/8-, or 1-inch cutter hole diameters.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the milling machine before mounting or removing the arbor from the spindle. Ensure the R8 taper and spindle bore are clean and free of chips or burrs before seating the arbor. Use the included Allen key to secure the saw blade and spacing collars to the proper torque per the blade manufacturer's guidance.
