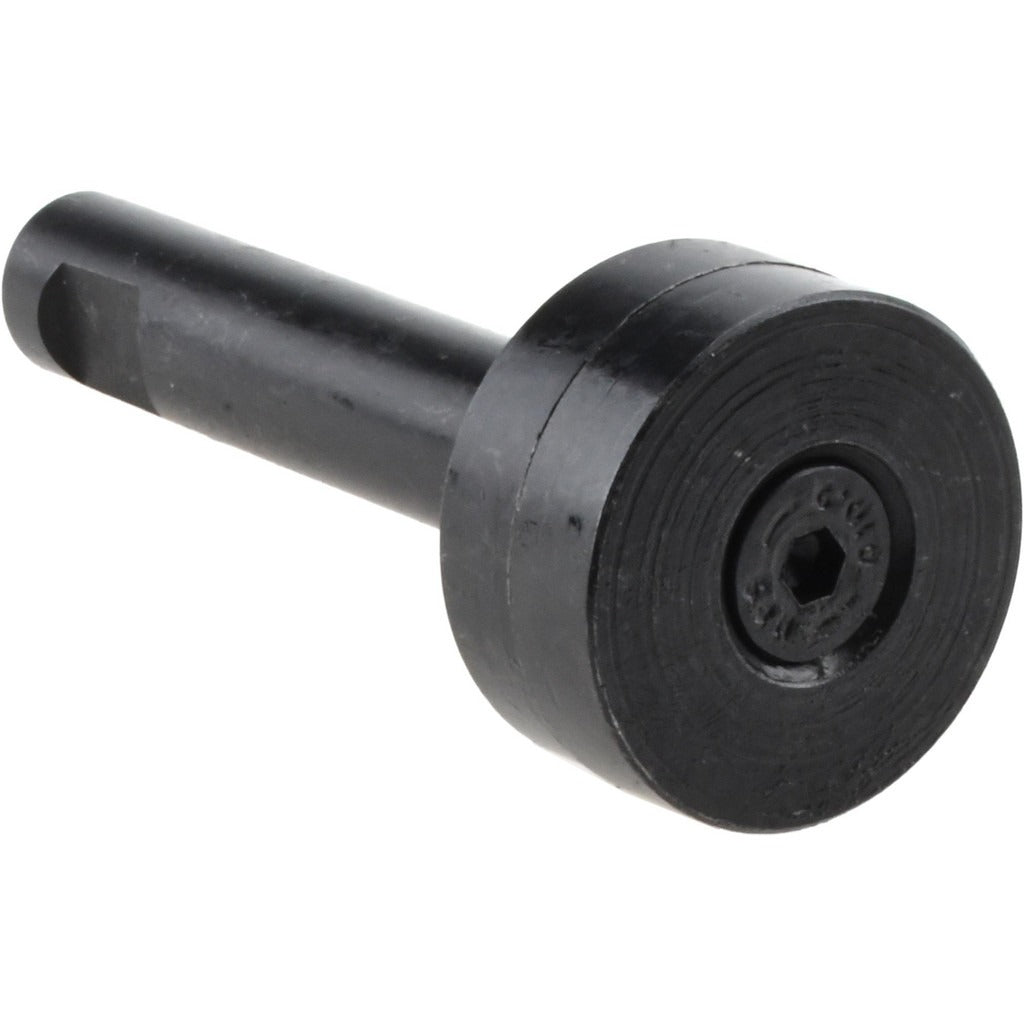

Value Collection SA/1 Slitting Slotting Saw Arbor

Product Description

The VALUE COLLECTION SA/1 is a straight-shank slitting and slotting saw arbor designed to mount slitting or slotting saw blades in milling machine setups. The arbor features a 0.5-inch straight shank and an overall length of 3.25 inches, with an arbor diameter of 1.259 inches and a projection of 16.50 millimeters from the flange face to the cutter seat. It accepts saw blades with a 3/8-inch cutter hole diameter. An Allen key is included for blade retention. Machinists and toolroom technicians use this arbor as a direct-mount accessory on vertical mills and manual milling machines.

This arbor is suited for slitting and slotting operations in job shop, maintenance, and production environments. It fits standard milling machine spindles that accept a straight 0.5-inch shank. Typical applications include cutting narrow slots, sawing thin stock, and producing keyways or relief cuts in metal workpieces. The included Allen key allows on-machine blade changes without additional tooling.

Key Features

• Straight shank design for direct mounting in collet chucks or drill-mill setups
• Accepts saw blades with a 3/8-inch cutter hole diameter
• Arbor diameter of 1.259 inches for positive blade registration
• Overall length of 3.25 inches provides clearance for typical milling applications
• Allen key included for secure blade clamping

Compatibility

Designed as a standard-style slitting and slotting saw arbor for use with milling machines that accept a straight 0.5-inch shank and slitting saw blades bored to 3/8 inch.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the milling machine spindle is fully stopped and locked out before mounting or removing the arbor. Seat the straight shank fully and concentrically in the collet or chuck before tightening. Verify blade seating and fastener engagement with the included Allen key prior to initiating any cut.
