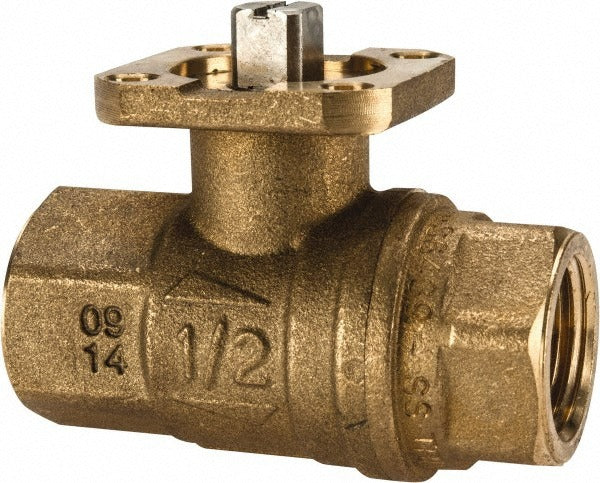

Value Collection S64D39 Ball Valve 1/2 Inch Fnpt Brass

Product Description

The VALUE COLLECTION S64D39 is a standard manual ball valve designed for shutoff and flow-control applications in plumbing, HVAC, and light industrial piping systems. The valve features a full-port design, meaning the bore diameter matches the pipe inside diameter to minimize pressure drop across the valve. The brass body provides corrosion resistance in water and many fluid service applications. Stainless steel trim adds durability at the stem and ball, while the reinforced PTFE seat delivers low-friction operation and a reliable seal across a range of temperatures and media. A licensed plumber or pipefitter is the typical installer.

This valve is suited for residential and light commercial installations where a 1/2-inch isolation or shutoff point is needed. Common applications include domestic water supply lines, hydronic heating circuits, compressed air distribution, and HVAC equipment isolation. The FNPT x FNPT end connections thread directly onto male-threaded pipe or fittings without soldering or pressing. The ISO actuation mount on the handle allows for actuator upgrades if automated operation is needed in the future.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• Brass body construction for corrosion resistance in water and fluid service
• Stainless steel trim for extended service life at stem and ball
• Reinforced PTFE seat provides a low-friction, reliable shutoff seal
• FNPT x FNPT connections for direct threaded installation onto standard pipe
• ISO actuation mount allows future actuator installation without valve replacement

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 1/2-inch threaded piping systems in plumbing, HVAC, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and ASME B31 piping standards. Shut off the water or fluid supply and relieve system pressure before removing any existing valve or fitting. Apply appropriate thread sealant or PTFE tape to male threads before making up FNPT connections. Do not overtighten threaded joints; follow standard hand-tight-plus-turns practice for the pipe material and fitting type in use.
