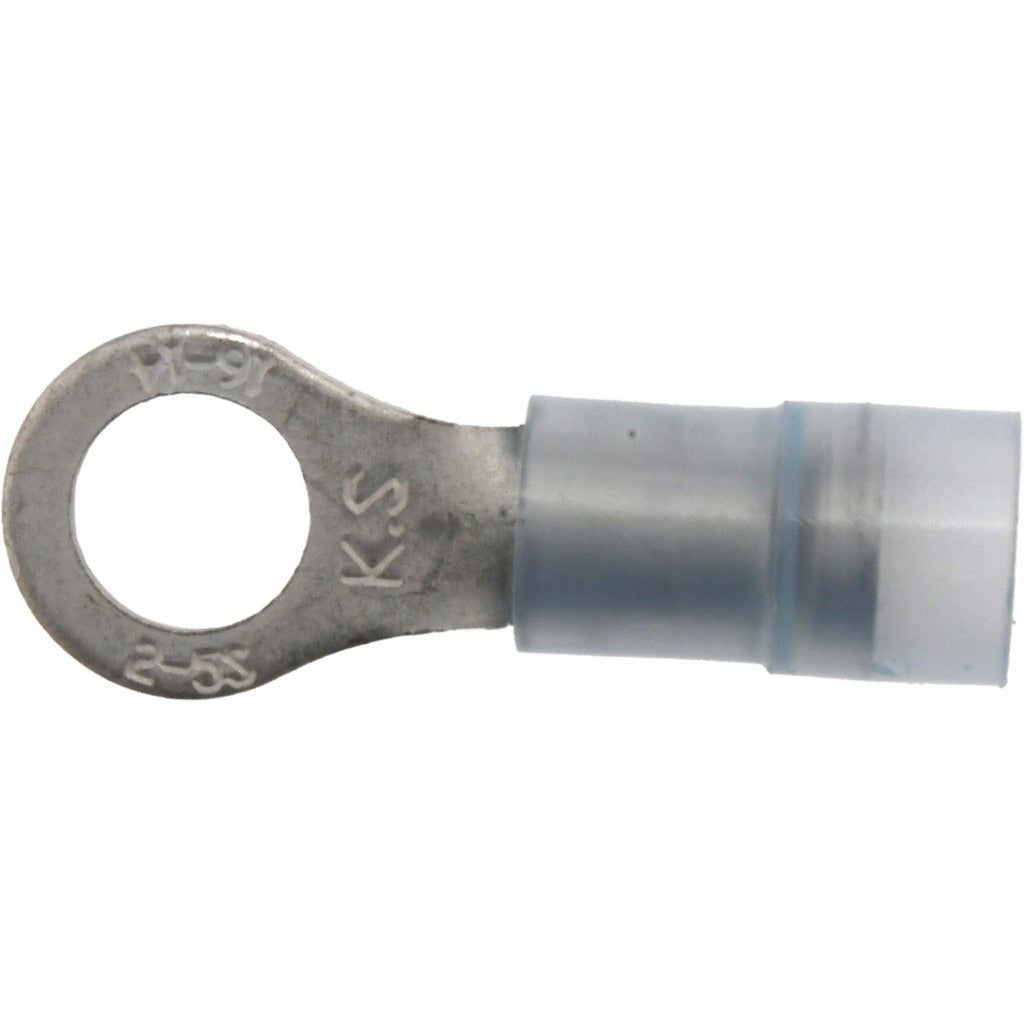

Value Collection RNYDS2-5 Ring Terminal 16-14 Awg Crimp 100pk

Product Description

The VALUE COLLECTION RNYDS2-5 is a partially insulated circular ring terminal designed for secure crimp connections on copper conductors ranging from 16 to 14 AWG (1.50 to 2.50 sq mm). The terminal features a blue nylon insulation sleeve and a tin-plated (TiN) copper contact that resists corrosion and maintains conductivity under repeated use. It accepts a No. 10 stud (M5, 5.30 mm), making it a standard fit across a wide range of electrical panel, control board, and equipment grounding applications. Overall length is 0.898 inches with a ring width of 0.335 inches and a contact thickness of 0.031 inches. Licensed electricians and panel technicians are the primary installers of this terminal type.

This ring terminal is suited for residential and light commercial electrical work, control wiring, HVAC low-voltage circuits, and equipment bonding connections. The 16 to 14 AWG wire range covers common control and branch-circuit conductors. The nylon insulation sleeve provides strain relief at the crimp barrel and protects the conductor entry point. Each package contains 100 terminals, making this pack appropriate for ongoing service work or panel builds where consistent terminal quality is required.

Key Features

• Partially insulated blue nylon sleeve for visual wire-gauge identification and strain relief
• Tin-plated (TiN) copper contact for corrosion resistance and reliable conductivity
• Crimp connection type — no soldering required
• Accepts No. 10 (M5) stud, 5.30 mm diameter
• Compatible with 16 to 14 AWG conductors (1.50 to 2.50 sq mm)
• 100 terminals per package for high-volume service or installation work

Compatibility

Designed for use with 16 to 14 AWG copper conductors on No. 10 or M5 threaded studs, suitable for general electrical, control wiring, and equipment grounding applications.

Installation Notes

Installation is performed by licensed electricians or qualified technicians. De-energize all circuits before terminating or inspecting ring terminals per NEC requirements. Use a calibrated ratcheting crimp tool sized for 16 to 14 AWG terminals to ensure a proper crimp — do not use pliers as a substitute. Inspect the crimp for full barrel compression and confirm the terminal seats flush against the stud before torquing the fastener.
